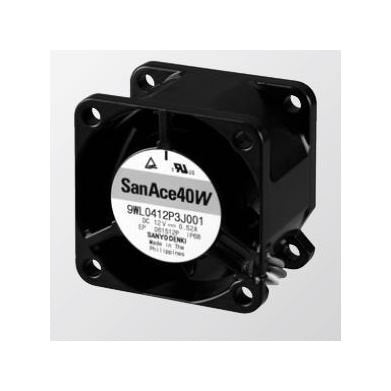

San Ace 40W Splash Proof Fan
San Ace 40W Splash Proof Fan
SKU:SAN-1f98ed
Reliable San Ace 40W Splash Proof Fan for efficient cooling in compact spaces
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
San Ace 40W Splash Proof Fan
$29.99
Quantity: 1
Claim Your Seller Account
San Ace 40W Splash Proof Fan
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The San Ace 40W Splash Proof Fan is a reliable cooling solution suitable for both consumer and institutional use. With dimensions of 40 x 40 x 28 mm and a sturdy aluminum frame coated in black, this fan ensures durability. It features UL94V-0 flammability-rated plastic impeller, making it safe for various applications. Operating at 24 V with a rated speed ranging from 4000 to 17500 rpm, it delivers efficient airflow of up to 0.63 m³/min. Additionally, with a sound pressure level between 22-51 dBA and an expected lifespan of 150,000 hours, this fan guarantees quiet and long-lasting performance.
Product Specifications
Specifications Anode Lead Wire Color
Red
Specifications Cathode Lead Wire Color
Black

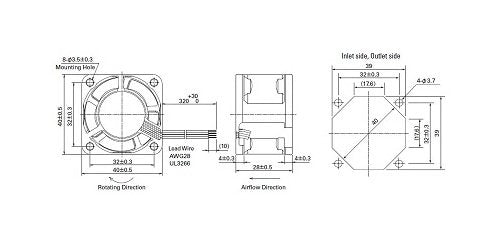

Specifications Dimensions
40 Ã 40 Ã 28 mm
Specifications Expected Life At 60c
150,000 hours
Specifications Frame Material
Aluminum (Black coating)
Specifications Impeller Material
Plastics (Flammability: UL94V-0)
Specifications Mass
70 g
Specifications Maximum Air Flow
0.63 m³/min | 22.2 ft³/min
Specifications Maximum Pulse Width Modulation Pwm Duty Cycle
100 %
Specifications Maximum Rated Current
0.26 A
Specifications Maximum Rated Input Power
6.24 W
Specifications Maximum Rated Speed
17500 rpm
Specifications Maximum Sound Pressure Level
51 dBA
Specifications Maximum Static Pressure
400 Pa | 1.61 inH2O
Specifications Minimum Air Flow
0.14 m³/min | 5.1 ft³/min
Specifications Minimum Pulse Width Modulation Pwm Duty Cycle
20 %
Specifications Minimum Rated Current
0.04 A
Specifications Minimum Rated Input Power
0.96 W
Specifications Minimum Rated Speed
4000 rpm
Specifications Minimum Sound Pressure Level
22 dBA
Specifications Minimum Static Pressure
20.9 Pa | 0.08 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature
-20 to +70 ºC
Specifications Operating Voltage Range
21.6 to 26.4 V
Specifications Rated Voltage
24 V
Specifications Sensor Lead Wire Color
Yellow
