San Ace 40W Splash Proof Fan
San Ace 40W Splash Proof Fan
SKU:SAN-a888fe
High-performance San Ace 40W Splash Proof Fan for reliable cooling in compact spaces. UL94V-0/UL94V-1 rated plastics, 12 V, 6500 rpm, 0.183 m³/min airflow.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
San Ace 40W Splash Proof Fan
$29.99
Quantity: 1
Claim Your Seller Account
San Ace 40W Splash Proof Fan
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

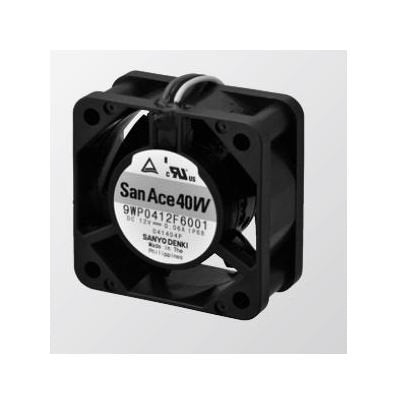

The San Ace 40W Splash Proof Fan is a durable and efficient cooling solution designed for both consumer and institutional use. With dimensions of 40 × 40 × 20 mm and a lightweight construction of 50 g, this fan is crafted from high-quality plastics with UL94V-0 and UL94V-1 flammability ratings. It operates at a rated voltage of 12 V, with a rated speed of 6500 rpm and a maximum air flow of 0.183 m³/min. Additionally, it meets compliance with various industry standards ensuring reliable performance and longevity for up to 70,000 hours at 40ºC.
Product Specifications
Specifications Anode Lead Wire Color
Red
Specifications Cathode Lead Wire Color
Black

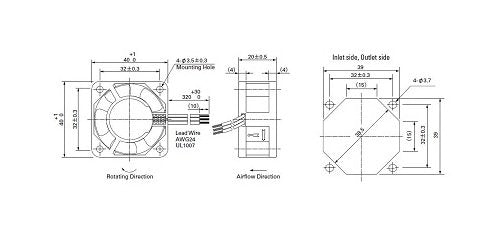

Specifications Dimensions
40 Ã 40 Ã 20 mm
Specifications Expected Life At 40c
70,000 hours
Specifications Expected Life At 60c
40,000 hours
Specifications Frame Material
Plastics (Flammability: UL94V-0)
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Mass
50 g
Specifications Maximum Air Flow
0.183 m³/min | 6.5 ft³/min
Specifications Maximum Static Pressure
45.1 Pa | 0.181 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature
-10 to +60 ºC
Specifications Operating Voltage Range
7 to 13.8 V
Specifications Rated Current
0.06 A
Specifications Rated Input Power
0.72 W
Specifications Rated Speed
6500 rpm
Specifications Rated Voltage
12 V
Specifications Sensor Lead Wire Color
Yellow
Specifications Sound Pressure Level
28 dBA
