San Ace 40W Splash Proof Fan 40 Ã 40 mm
San Ace 40W Splash Proof Fan 40 Ã 40 mm
SKU:SAN-1398c4
Reliable San Ace 40W Splash Proof Fan for efficient cooling in demanding environments.
Regular price
$14.99
Regular price
Sale price
$14.99
Unit price
per
Initiate Order
San Ace 40W Splash Proof Fan 40 Ã 40 mm
$14.99
Quantity: 1
Claim Your Seller Account
San Ace 40W Splash Proof Fan 40 Ã 40 mm
$14.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

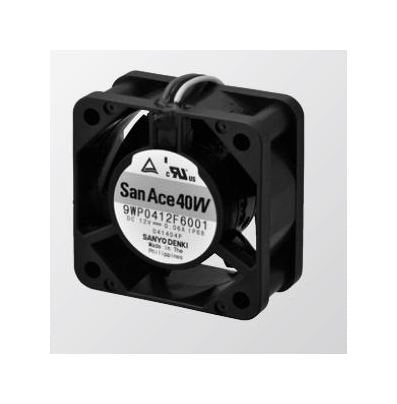

The San Ace 40W Series Splash Proof Fan is a reliable cooling solution designed for demanding environments. With a sturdy plastic frame and UL94V-0 flammability rating, this fan ensures safety and durability. Its UL94V-1 rated plastic impeller and red (+) and black (-) lead wire colors provide efficient operation. Operating at 12V with a rated current of 0.1A, this fan delivers a maximum airflow of 0.225 m³/min and a sound pressure level of 33 dBA. With an expected life of up to 70,000 hours at 40ºC, this fan is a high-performance choice for various applications.
Product Specifications
Specifications Anode Lead Wire Color
Red
Specifications Cathode Lead Wire Color
Black

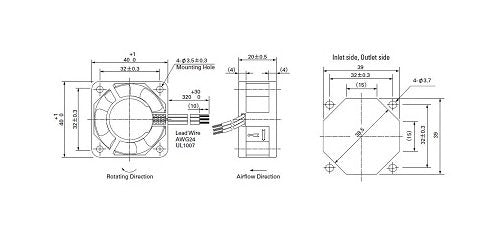

Specifications Dimensions
40 Ã 40 Ã 20 mm
Specifications Expected Life At 40c
70,000 hours
Specifications Expected Life At 60c
40,000 hours
Specifications Frame Material
Plastics (Flammability: UL94V-0)
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Mass
50 g
Specifications Maximum Air Flow
0.225 m³/min | 8.0 ft³/min
Specifications Maximum Static Pressure
65.7 Pa | 0.264 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature
-10 to +60 ºC
Specifications Operating Voltage Range
7 to 13.8 V
Specifications Rated Current
0.1 A
Specifications Rated Input Power
1.2 W
Specifications Rated Speed
8000 rpm
Specifications Rated Voltage
12 V
Specifications Sensor Lead Wire Color
Yellow
Specifications Sound Pressure Level
33 dBA
