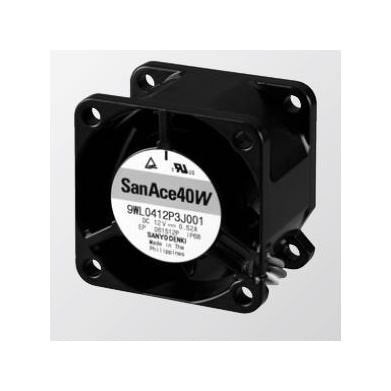

San Ace 40W Splash Proof Fan, 9WL0412P3J001
San Ace 40W Splash Proof Fan, 9WL0412P3J001
SKU:SAN-50d743
High-performance San Ace 40W Splash Proof Fan, ideal for industrial use. Lightweight aluminum frame, UL94V-0 rated plastic impeller, long lifespan.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
San Ace 40W Splash Proof Fan, 9WL0412P3J001
$29.99
Quantity: 1
Claim Your Seller Account
San Ace 40W Splash Proof Fan, 9WL0412P3J001
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The San Ace 40W Splash Proof Fan, model 9WL0412P3J001, is a high-performance cooling solution meticulously designed for demanding industrial environments. With dimensions of 40 × 40 × 28 mm and a lightweight aluminum frame, this fan ensures efficient heat dissipation. The UL94V-0 rated plastic impeller guarantees safe operation, while the anode lead wire in red and cathode lead wire in black simplifies installation. Operating within a wide temperature range and boasting a long lifespan of 150,000 hours at 60°C, this fan is a reliable choice for both consumer and institutional applications.
Product Specifications
Specifications Anode Lead Wire Color
Red
Specifications Cathode Lead Wire Color
Black

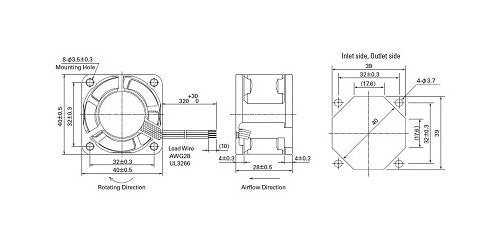

Specifications Dimensions
40 Ã 40 Ã 28 mm
Specifications Expected Life At 60c
150,000 hours
Specifications Frame Material
Aluminum (Black coating)
Specifications Impeller Material
Plastics (Flammability: UL94V-0)
Specifications Mass
70 g
Specifications Maximum Air Flow
0.63 m³/min | 22.2 ft³/min
Specifications Maximum Pulse Width Modulation Pwm Duty Cycle
100 %
Specifications Maximum Rated Current
0.52 A
Specifications Maximum Rated Input Power
6.24 W
Specifications Maximum Rated Speed
17500 rpm
Specifications Maximum Sound Pressure Level
51 dBA
Specifications Maximum Static Pressure
400 Pa | 1.61 inH2O
Specifications Minimum Air Flow
0.13 m³/min | 4.6 ft³/min
Specifications Minimum Pulse Width Modulation Pwm Duty Cycle
20 %
Specifications Minimum Rated Current
0.06 A
Specifications Minimum Rated Input Power
0.72 W
Specifications Minimum Rated Speed
3600 rpm
Specifications Minimum Sound Pressure Level
20 dBA
Specifications Minimum Static Pressure
16.9 Pa | 0.07 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature
-20 to +70 ºC
Specifications Operating Voltage Range
10.8 to 13.2 V
Specifications Rated Voltage
12 V
Specifications Sensor Lead Wire Color
Yellow
