San Ace 40WF Oil Proof Fan
San Ace 40WF Oil Proof Fan
SKU:SAN-ef0102
Reliable San Ace 40WF Oil Proof Fan for industrial and institutional cooling needs. Meets safety standards and offers superior performance.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
San Ace 40WF Oil Proof Fan
$29.99
Quantity: 1
Claim Your Seller Account
San Ace 40WF Oil Proof Fan
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

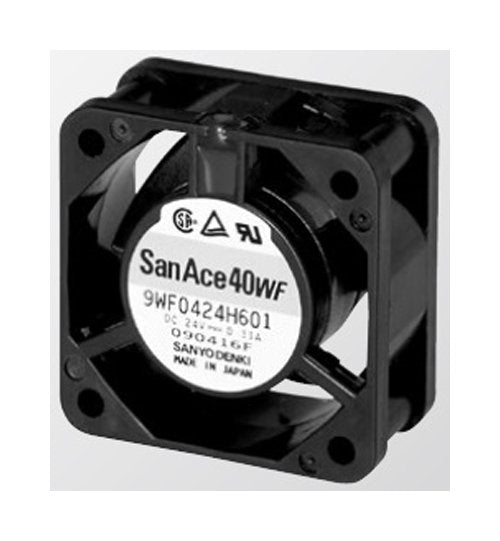

The San Ace 40WF Oil Proof Fan is a reliable cooling solution designed for industrial and institutional applications. With dimensions of 40 x 40 x 20 mm and a robust frame material meeting UL94V-0 flammability standards, this fan ensures efficient cooling while prioritizing safety. Operating at a voltage range of 20.4 to 27.6 V and offering a maximum air flow of 0.22 m³/min, this fan is ideal for maintaining optimal temperatures in various settings. With a sound pressure level of 37 dBA and an expected life of 40,000 hours at 60°C, this fan combines performance and durability for long-term use.
Product Specifications
Specifications Anode Lead Wire Color
Red
Specifications Cathode Lead Wire Color
Black | Blue
Specifications Dimensions
40 x 40 x 20 mm
Specifications Expected Life At 60c
40,000 hours
Specifications Frame Material
Plastics (Flammability: UL94V-0)
Specifications Impeller Material
Plastics (Flammability: UL94V-0)
Specifications Mass
50 g
Specifications Maximum Air Flow
0.22 m³/min | 7.77 ft³/min
Specifications Maximum Static Pressure
62.8 Pa | 0.252 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature Range
-20 to +70 ºC
Specifications Operating Voltage Range
20.4 to 27.6 V
Specifications Rated Current
0.076 A
Specifications Rated Input Power
1.82 W
Specifications Rated Speed
11000 rpm
Specifications Rated Voltage
24 V
Specifications Sensor Lead Wire Color
Yellow
Specifications Sound Pressure Level
37 dBA
