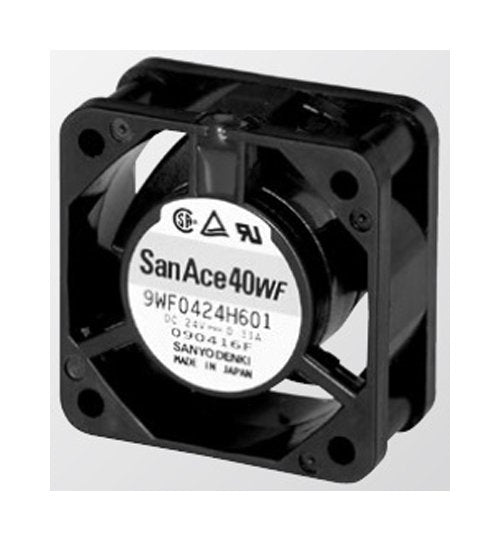

San Ace 40WF Oil Proof Fan 40x40x20mm, 24V, 9.2 ft³/min

Name: San Ace 40WF Oil Proof Fan 40x40x20mm, 24V, 9.2 ft³/min
Brand: Marsh Electronics, Inc.
SKU: SAN-8d4c92
Price: 29.99 USD
Availability: OutOfStock

SKU:SAN-8d4c92

Reliable San Ace 40WF Oil Proof Fan for demanding environments. 40x40x20mm, 24V, 9.2 ft³/min.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The San Ace 40WF Oil Proof Fan is a reliable solution for cooling systems in demanding environments. Measuring 40x40x20mm, this fan features a UL94V-0 plastic frame and impeller, ensuring flame resistance. With a rated voltage of 24V and a rated speed of 13100 rpm, it delivers a maximum air flow of 9.2 ft³/min while maintaining a sound pressure level of 42 dBA. Designed to operate in temperatures ranging from -20 to +70°C, this fan promises an expected life of 40,000 hours at 60°C, making it ideal for institutional and government procurement needs.

Product Specifications

Specifications Anode Lead Wire Color

Red

Specifications Cathode Lead Wire Color

Black | Blue

Specifications Dimensions

40 x 40 x 20 mm

Specifications Expected Life At 60c

40,000 hours

Specifications Frame Material

Plastics (Flammability: UL94V-0)

Specifications Impeller Material

Plastics (Flammability: UL94V-0)

Specifications Mass

50 g

Specifications Maximum Air Flow

0.26 mÂ³/min | 9.2 ftÂ³/min

Specifications Maximum Static Pressure

90 Pa | 0.361 inH2O

Specifications Non Condensing Storage Temperature

-30 to +70 ÂºC

Specifications Operating Temperature Range

-20 to +70 ÂºC

Specifications Operating Voltage Range

20.4 to 27.6 V

Specifications Rated Current

0.11 A

Specifications Rated Input Power

2.64 W

Specifications Rated Speed

13100 rpm

Specifications Rated Voltage

24 V

Specifications Sensor Lead Wire Color

Yellow

Specifications Sound Pressure Level

42 dBA

San Ace 40WF Oil Proof Fan 40x40x20mm, 24V, 9.2 ft³/min
