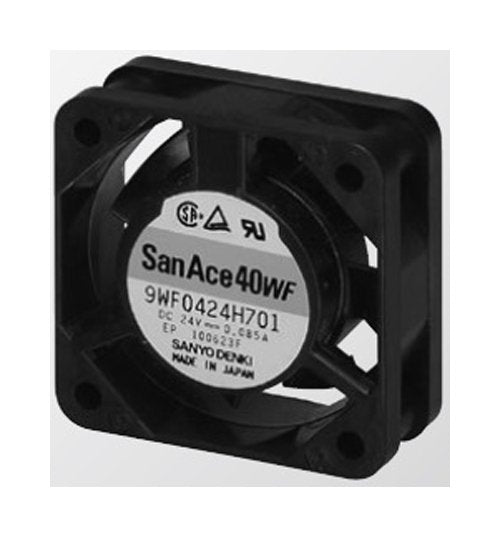

San Ace 40WF Oil Proof Fan, Model 9WF0424H701
San Ace 40WF Oil Proof Fan, Model 9WF0424H701
SKU:SAN-6df1a6
Reliable San Ace 40WF Oil Proof Fan for industrial cooling needs. 40 x 40 x 15 mm size, 24V rated voltage, and 0.195 m³/min airflow.
Regular price
$26.99
Regular price
Sale price
$26.99
Unit price
per
Initiate Order
San Ace 40WF Oil Proof Fan, Model 9WF0424H701
$26.99
Quantity: 1
Claim Your Seller Account
San Ace 40WF Oil Proof Fan, Model 9WF0424H701
$26.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The San Ace 40WF Oil Proof Fan, model 9WF0424H701, is a reliable cooling solution designed for industrial environments. With dimensions of 40 x 40 x 15 mm and a robust plastic frame and impeller, this fan is built to withstand harsh conditions. Operating on a rated voltage of 24V, it offers a maximum air flow of 0.195 m³/min and a maximum static pressure of 80 Pa. With a rated speed of 11300 rpm and a sound pressure level of 38 dBA, this fan ensures efficient cooling without excessive noise. Expect a long service life of 40,000 hours at 60°C, making it a durable choice for demanding applications.
Product Specifications
Specifications Anode Lead Wire Color
Red
Specifications Cathode Lead Wire Color
Black
Specifications Dimensions
40 x 40 x 15 mm
Specifications Expected Life At 60c
40,000 hours
Specifications Frame Material
Plastics (Flammability: UL94V-0)
Specifications Impeller Material
Plastics (Flammability: UL94V-0)
Specifications Mass
35 g
Specifications Maximum Air Flow
0.195 m³/min | 6.9 ft³/min
Specifications Maximum Static Pressure
80 Pa | 0.32 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature Range
-20 to +70 ºC
Specifications Operating Voltage Range
20.4 to 27.6 V
Specifications Rated Current
0.085 A
Specifications Rated Input Power
2.04 W
Specifications Rated Speed
11300 rpm
Specifications Rated Voltage
24 V
Specifications Sensor Lead Wire Color
Yellow
Specifications Sound Pressure Level
38 dBA
