San Ace 60 Series AC Fan - Model 109-133
San Ace 60 Series AC Fan - Model 109-133
SKU:SAN-b6bb05
High-performance San Ace 60 Series AC Fan - Model 109-133 for efficient cooling in various applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
San Ace 60 Series AC Fan - Model 109-133
$29.99
Quantity: 1
Claim Your Seller Account
San Ace 60 Series AC Fan - Model 109-133
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

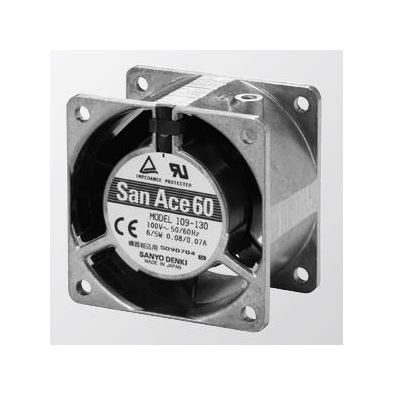

The San Ace 60 Series AC Fan - Model 109-133 is a high-performance cooling solution designed for a variety of applications. With dimensions of 60 × 60 × 38 mm and a lightweight aluminum frame, this fan is both compact and durable. The impeller is made of UL94V-1 rated plastics, ensuring safety and reliability. Operating at a rated voltage of 115V and with a dielectric strength of 1,500V AC, this fan delivers optimal airflow with a maximum air flow of 0.4 m³/min. Its sound pressure level of 30 dBA and operating temperature range of -30 to +60 °C make it suitable for diverse environments. With an expected life of 25,000 hours at 60°C, this fan is a long-lasting solution for cooling needs.
Product Specifications
Specifications Current
0.07/0.06 A
Specifications Dielectric Strength
50/60 Hertz (Hz) 1,500 Volt (V) AC 1 Minute (min) (between lead conductor and frame)

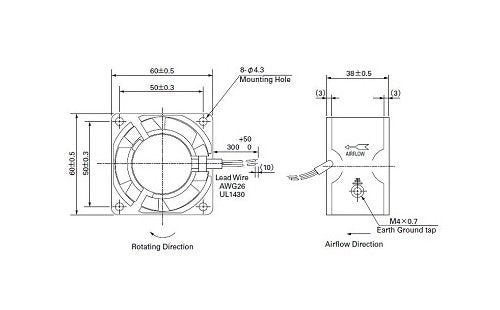

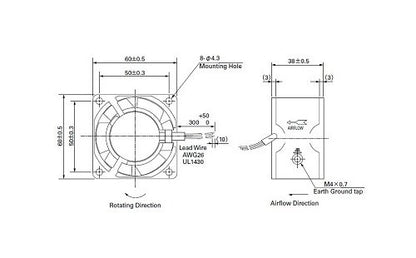

Specifications Dimensions
60 Ã 60 Ã 38 mm
Specifications Expected Life At 60c
25000 hours
Specifications Frame Material
Aluminum
Specifications Frequency
50/60 Hz
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Input
6/5 W
Specifications Lead Wire Color
Black
Specifications Lead Wire Quantity
2 pieces
Specifications Locked Rotor Current
0.07/0.06 A
Specifications Mass
170 g
Specifications Maximum Air Flow
0.33/0.4 m³/min | 11.7/14.1 ft³/min
Specifications Maximum Static Pressure
16.3/23.3 Pa | 0.065/0.094 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature Range
-30 to +60 ºC
Specifications Operating Voltage Range
Voltage of each model ±10%
Specifications Rated Speed
2,600/3,150 rpm
Specifications Rated Voltage
115 V
Specifications Sound Pressure Level
28/30 dBA
