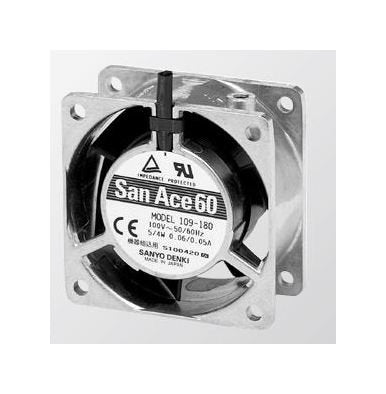

San Ace 60 Series AC Fan - Model 109-180
San Ace 60 Series AC Fan - Model 109-180
SKU:SAN-616070
Reliable San Ace 60 Series AC Fan - Model 109-180 with Aluminum Frame & UL94V-1 Rated Plastics for Efficient Cooling.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
San Ace 60 Series AC Fan - Model 109-180
$34.99
Quantity: 1
Claim Your Seller Account
San Ace 60 Series AC Fan - Model 109-180
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The San Ace 60 Series AC Fan, Model 109-180, is a reliable cooling solution ideal for a wide range of applications. With dimensions of 60 x 60 x 28 mm and a lightweight aluminum frame, this fan is designed for durability and efficiency. The impeller is made of plastics with a UL94V-1 flammability rating, ensuring safety. Operating at a rated voltage of 100V and a frequency of 50/60 Hz, it offers a maximum airflow of 0.33 m³/min and a maximum static pressure of 18.6 Pa. The fan operates quietly at a sound pressure level of 26 dBA, making it suitable for noise-sensitive environments. With an expected life of 25,000 hours at 60ºC, this fan is a cost-effective cooling solution that meets stringent industry standards.
Product Specifications
Specifications Current
0.06/0.05 A
Specifications Dielectric Strength
50/60 Hertz (Hz) 1,500 Volt (V) AC 1 Minute (min) (between lead conductor and frame)

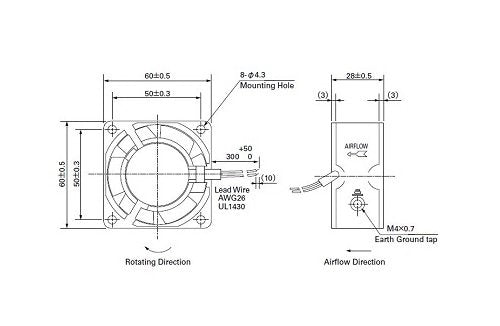

Specifications Dimensions
60 Ã 60 Ã 28 mm
Specifications Expected Life At 60c
25000 hours
Specifications Frame Material
Aluminum
Specifications Frequency
50/60 Hz
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Input
5/4 W
Specifications Lead Wire Color
Black
Specifications Lead Wire Quantity
2 pieces
Specifications Locked Rotor Current
0.07/0.06 A
Specifications Mass
120 g
Specifications Maximum Air Flow
0.27/0.33 m³/min | 9.5/11.7 ft³/min
Specifications Maximum Static Pressure
11.8/18.6 Pa | 0.047/0.075 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature Range
-30 to +70 ºC
Specifications Operating Voltage Range
Voltage of each model ±10%
Specifications Rated Speed
2,250/2,700 rpm
Specifications Rated Voltage
100 V
Specifications Sound Pressure Level
24/26 dBA
