San Ace 60 Series AC Fan - Model 109-183
San Ace 60 Series AC Fan - Model 109-183
SKU:SAN-495deb
Enhance cooling efficiency with the San Ace 60 Series AC Fan - Model 109-183. Lightweight aluminum frame, UL94V-1 rated plastics, and reliable performance.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
San Ace 60 Series AC Fan - Model 109-183
$29.99
Quantity: 1
Claim Your Seller Account
San Ace 60 Series AC Fan - Model 109-183
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

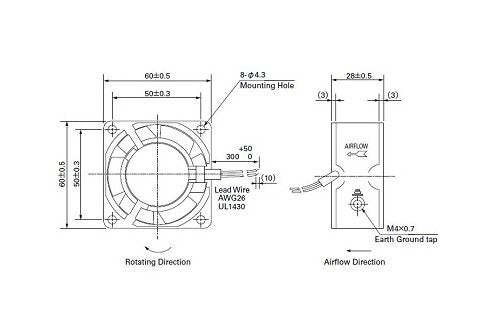

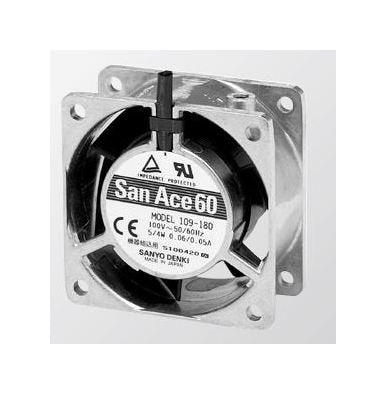

The San Ace 60 Series AC Fan, model 109-183, is a high-performance cooling solution designed for optimal efficiency and durability. With dimensions of 60 × 60 × 28 mm and a lightweight aluminum frame, this fan ensures reliable cooling in various applications. The impeller is made of UL94V-1 rated plastics, offering excellent fire resistance. Operating at 115V with a frequency of 50/60 Hz, this fan delivers a maximum air flow of 0.33 m³/min and a maximum static pressure of 18.6 Pa. With a rated speed of 2,700 rpm and a sound pressure level of 26 dBA, it provides efficient cooling while maintaining quiet operation. Expect extended longevity with an estimated lifespan of 25,000 hours at 60ºC.
Product Specifications
Specifications Current
0.06/0.05 A
Specifications Dielectric Strength
50/60 Hertz (Hz) 1,500 Volt (V) AC 1 Minute (min) (between lead conductor and frame)
Specifications Dimensions
60 Ã 60 Ã 28 mm
Specifications Expected Life At 60c
25000 hours
Specifications Frame Material
Aluminum
Specifications Frequency
50/60 Hz
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Input
5/4 W
Specifications Lead Wire Color
Black
Specifications Lead Wire Quantity
2 pieces
Specifications Locked Rotor Current
0.06/0.05 A
Specifications Mass
120 g
Specifications Maximum Air Flow
0.27/0.33 m³/min | 9.5/11.7 ft³/min
Specifications Maximum Static Pressure
11.8/18.6 Pa | 0.047/0.075 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature Range
-30 to +70 ºC
Specifications Operating Voltage Range
Voltage of each model ±10%
Specifications Rated Speed
2,250/2,700 rpm
Specifications Rated Voltage
115 V
Specifications Sound Pressure Level
24/26 dBA
