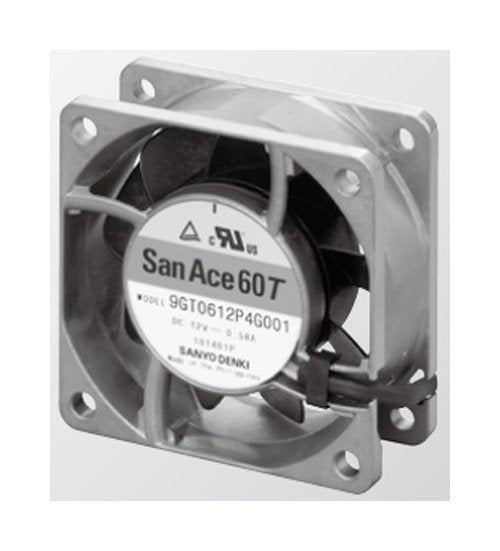

San Ace 60T Wide Temp Fan 60x60x25mm 24V UL94V-1 Compliant
San Ace 60T Wide Temp Fan 60x60x25mm 24V UL94V-1 Compliant
SKU:SAN-676618
High-performance San Ace 60T Wide Temp Fan for industrial & institutional cooling, optimized for extreme temperatures & PWM control.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
San Ace 60T Wide Temp Fan 60x60x25mm 24V UL94V-1 Compliant
$29.99
Quantity: 1
Claim Your Seller Account
San Ace 60T Wide Temp Fan 60x60x25mm 24V UL94V-1 Compliant
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The San Ace 60T Wide Temperature Range Fan is a high-performance cooling solution designed for industrial and institutional applications. With a compact size of 60 x 60 x 25 mm and a robust aluminum frame, this fan ensures reliable operation in extreme temperatures from -40 to +85 ºC. It features UL94V-1 compliant plastics for enhanced safety and durability. Operating at voltages ranging from 20.4V to 27.6V, this fan offers a broad PWM duty cycle range from 30% to 100% with a frequency of 25 kHz. Delivering a maximum air flow of 1.26 m³/min and a maximum static pressure of 243 Pa, this fan is ideal for demanding cooling requirements while maintaining low noise levels.
Product Specifications
Specifications Anode Lead Wire Color
Red
Specifications Cathode Lead Wire Color
Black
Specifications Control Lead Wire Color
Brown
Specifications Dimensions
60 x 60 x 25 mm
Specifications Expected Life At 85c
40000 hours
Specifications Frame Material
Aluminum
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Mass
100 g
Specifications Maximum Air Flow
1.26 m³/min | 44.5 ft³/min
Specifications Maximum Pulse Width Modulation Pwm Duty Cycle
100 %
Specifications Maximum Rated Current
0.28 A
Specifications Maximum Rated Input Power
6.72 W
Specifications Maximum Rated Speed
10000 rpm
Specifications Maximum Sound Pressure Level
52 dBA
Specifications Maximum Static Pressure
243 Pa | 0.97 inH2O
Specifications Minimum Air Flow
0.52 m³/min | 18.3 ft³/min
Specifications Minimum Pulse Width Modulation Pwm Duty Cycle
30 %
Specifications Minimum Rated Current
0.06 A
Specifications Minimum Rated Input Power
1.44 W
Specifications Minimum Rated Speed
4100 rpm
Specifications Minimum Sound Pressure Level
25 dBA
Specifications Minimum Static Pressure
42.8 Pa | 0.17 inH2O
Specifications Non Condensing Storage Temperature
-40 to 85 ºC
Specifications Note
Fan does not rotate when Pulse-Width Modulation (PWM) duty cycle is 0%.
Specifications Operating Temperature Range
-40 to +85 ºC
Specifications Operating Voltage Range
20.4 to 27.6 V
Specifications Pulse Width Modulation Pwm Frequency
25 kHz
Specifications Rated Voltage
24 V
Specifications Sensor Lead Wire Color
Yellow
