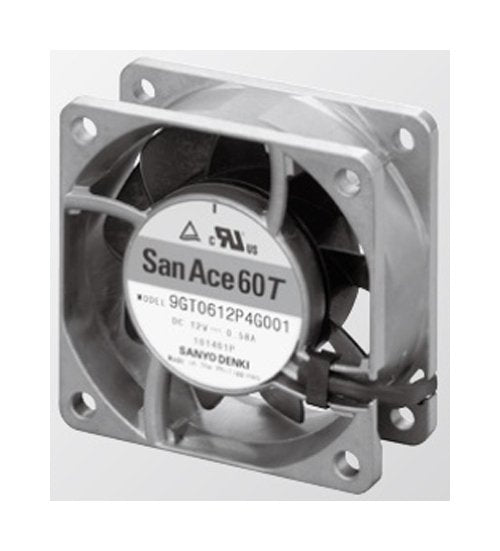

San Ace 60T Wide Temperature Range Fan
San Ace 60T Wide Temperature Range Fan
SKU:SAN-47e7e4
Enhance cooling with the San Ace 60T Wide Temperature Range Fan suitable for extreme conditions. Durable materials, high performance, and low noise levels ensure reliable operation.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
San Ace 60T Wide Temperature Range Fan
$29.99
Quantity: 1
Claim Your Seller Account
San Ace 60T Wide Temperature Range Fan
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The San Ace 60T Wide Temperature Range Fan is a durable and efficient cooling solution crafted with aluminum frame and UL94V-1 rated plastic impeller. With operating temperatures ranging from -40 to +85°C, this fan ensures reliable performance in extreme conditions. Designed for longevity, it offers a rated speed of 4100 to 10000 rpm and a sound pressure level between 25 to 52 dBA, meeting stringent industrial requirements.
Product Specifications
Specifications Anode Lead Wire Color
Red
Specifications Cathode Lead Wire Color
Black
Specifications Control Lead Wire Color
Brown
Specifications Dimensions
60 x 60 x 25 mm
Specifications Expected Life At 85c
40000 hours
Specifications Frame Material
Aluminum
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Mass
100 g
Specifications Maximum Air Flow
1.26 m³/min | 44.5 ft³/min
Specifications Maximum Pulse Width Modulation Pwm Duty Cycle
100 %
Specifications Maximum Rated Current
0.56 A
Specifications Maximum Rated Input Power
6.72 W
Specifications Maximum Rated Speed
10000 rpm
Specifications Maximum Sound Pressure Level
52 dBA
Specifications Maximum Static Pressure
243 Pa | 0.97 inH2O
Specifications Minimum Air Flow
0.52 m³/min | 18.3 ft³/min
Specifications Minimum Pulse Width Modulation Pwm Duty Cycle
30 %
Specifications Minimum Rated Current
0.11 A
Specifications Minimum Rated Input Power
1.32 W
Specifications Minimum Rated Speed
4100 rpm
Specifications Minimum Sound Pressure Level
25 dBA
Specifications Minimum Static Pressure
42.8 Pa | 0.17 inH2O
Specifications Non Condensing Storage Temperature
-40 to 85 ºC
Specifications Note
Fan does not rotate when Pulse-Width Modulation (PWM) duty cycle is 0%.
Specifications Operating Temperature Range
-40 to +85 ºC
Specifications Operating Voltage Range
10.2 to 13.8 V
Specifications Pulse Width Modulation Pwm Frequency
25 kHz
Specifications Rated Voltage
12 V
Specifications Sensor Lead Wire Color
Yellow
