The San Ace 60W Series Splash Proof Fan is a reliable cooling solution with a durable aluminum frame and UL94V-1 rated plastic impeller. Designed for long-term performance, it operates within a wide temperature range, offers efficient airflow, and low noise levels. With PWM control capabilities and compliance with stringent industry standards, this fan ensures optimal cooling in various environments.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Anode Lead Wire Color
Red
Specifications Cathode Lead Wire Color
Black
Specifications Control Lead Wire Color
Brown

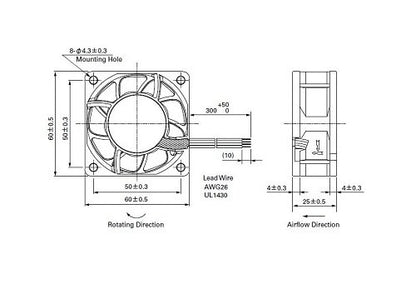

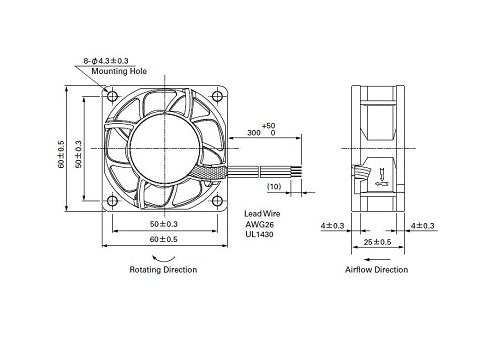

Specifications Dimensions
60Ã60Ã25 mm
Specifications Expected Life At 60c
180,000 hours
Specifications Frame Material
Aluminum (Black coating)
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Mass
110 g
Specifications Maximum Air Flow
0.78 m³/min | 27.5 ft³/min
Specifications Maximum Pulse Width Modulation Pwm Duty Cycle
100 %
Specifications Maximum Rated Current
0.17 A
Specifications Maximum Rated Input Power
2.04 W
Specifications Maximum Rated Speed
6,150 rpm
Specifications Maximum Sound Pressure Level
36 dBA
Specifications Maximum Static Pressure
97 Pa | 0.389 inH2O
Specifications Minimum Air Flow
0.17 m³/min | 6.0 ft³/min
Specifications Minimum Pulse Width Modulation Pwm Duty Cycle
20 %
Specifications Minimum Rated Current
0.03 A
Specifications Minimum Rated Input Power
0.36 W
Specifications Minimum Rated Speed
1,350 rpm
Specifications Minimum Sound Pressure Level
14 dBA
Specifications Minimum Static Pressure
4.7 Pa | 0.018 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature
-20 to +70 ºC
Specifications Operating Voltage Range
10.8 to 13.2 V
Specifications Rated Voltage
12 V
Specifications Sensor Lead Wire Color
Yellow
