San Ace 60W Series Splash Proof Fan - 24V, 60x60x25mm
San Ace 60W Series Splash Proof Fan - 24V, 60x60x25mm
SKU:SAN-a981c2
Reliable San Ace 60W Series Splash Proof Fan - 24V, 60x60x25mm, High Airflow, Low Noise, Durable
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
San Ace 60W Series Splash Proof Fan - 24V, 60x60x25mm
$24.99
Quantity: 1
Claim Your Seller Account
San Ace 60W Series Splash Proof Fan - 24V, 60x60x25mm
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The San Ace 60W Series Splash Proof Fan is a reliable cooling solution designed for demanding environments. With a durable aluminum frame and UL94V-1 rated plastic impeller, this fan ensures long-lasting performance. Operating within a wide voltage range of 21.6 to 26.4V, it delivers efficient airflow of up to 0.78m³/min while maintaining a low noise level of 14-36 dBA. Compliant with stringent industrial standards, this fan is ideal for applications requiring high airflow, low power consumption, and extended longevity.
Product Specifications
Specifications Anode Lead Wire Color
Red
Specifications Cathode Lead Wire Color
Black
Specifications Control Lead Wire Color
Brown

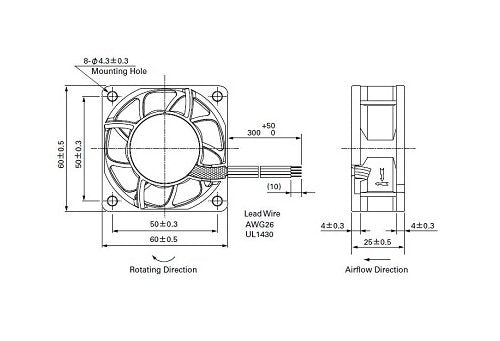

Specifications Dimensions
60Ã60Ã25 mm
Specifications Expected Life At 60c
180,000 hours
Specifications Frame Material
Aluminum (Black coating)
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Mass
110 g
Specifications Maximum Air Flow
0.78 m³/min | 27.5 ft³/min
Specifications Maximum Pulse Width Modulation Pwm Duty Cycle
100 %
Specifications Maximum Rated Current
0.08 A
Specifications Maximum Rated Input Power
1.92 W
Specifications Maximum Rated Speed
6,150 rpm
Specifications Maximum Sound Pressure Level
36 dBA
Specifications Maximum Static Pressure
97 Pa | 0.389 inH2O
Specifications Minimum Air Flow
0.16 m³/min | 5.6 ft³/min
Specifications Minimum Pulse Width Modulation Pwm Duty Cycle
20 %
Specifications Minimum Rated Current
0.02 A
Specifications Minimum Rated Input Power
0.48 W
Specifications Minimum Rated Speed
1,350 rpm
Specifications Minimum Sound Pressure Level
14 dBA
Specifications Minimum Static Pressure
4.3 Pa | 0.017 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature
-20 to +70 ºC
Specifications Operating Voltage Range
21.6 to 26.4 V
Specifications Rated Voltage
24 V
Specifications Sensor Lead Wire Color
Yellow
