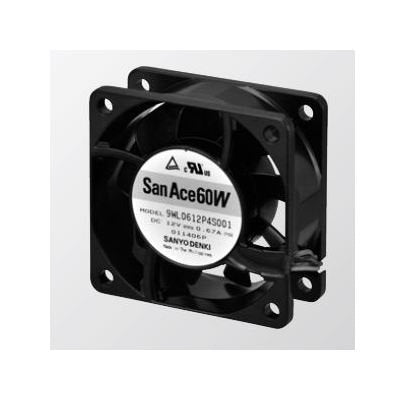

The San Ace 60W Series Splash Proof Fan, model 9WL0612P4S001, is a reliable and durable cooling solution suitable for a wide range of applications. With a frame material of aluminum coated in black and a UL94V-1 flammability-rated plastics impeller, this fan ensures both performance and safety. Operating at 12V with a speed range from 2,900 to 11,000 rpm, it offers a maximum air flow of 1.4 m³/min and a static pressure of up to 300 Pa. With a minimum sound pressure level of 20 dBA, it maintains a quiet operation. This fan is designed to withstand temperatures ranging from -20 to +70 °C and has an expected life of 180,000 hours, making it a reliable choice for various cooling needs.
Product Specifications
Specifications Anode Lead Wire Color
Red
Specifications Cathode Lead Wire Color
Black
Specifications Control Lead Wire Color
Brown

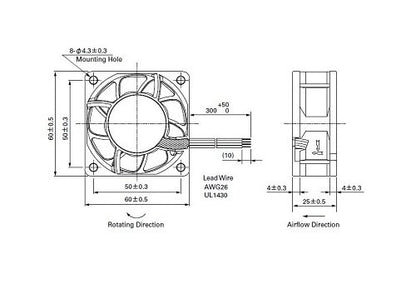

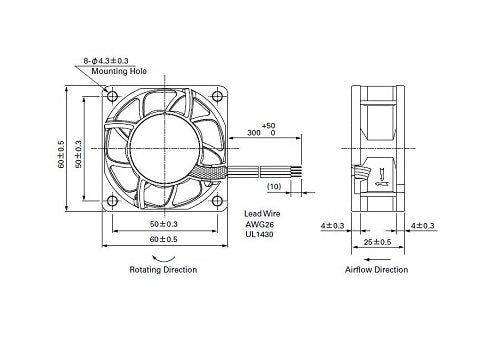

Specifications Dimensions
60Ã60Ã25 mm
Specifications Expected Life At 60c
180,000 hours
Specifications Frame Material
Aluminum (Black coating)
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Mass
110 g
Specifications Maximum Air Flow
1.4 m³/min | 49.4 ft³/min
Specifications Maximum Pulse Width Modulation Pwm Duty Cycle
100 %
Specifications Maximum Rated Current
0.67 A
Specifications Maximum Rated Input Power
8.04 W
Specifications Maximum Rated Speed
11,000 rpm
Specifications Maximum Sound Pressure Level
53 dBA
Specifications Maximum Static Pressure
300 Pa | 1.204 inH2O
Specifications Minimum Air Flow
0.36 m³/min | 12.7 ft³/min
Specifications Minimum Pulse Width Modulation Pwm Duty Cycle
20 %
Specifications Minimum Rated Current
0.06 A
Specifications Minimum Rated Input Power
0.72 W
Specifications Minimum Rated Speed
2,900 rpm
Specifications Minimum Sound Pressure Level
20 dBA
Specifications Minimum Static Pressure
20.8 Pa | 0.083 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature
-20 to +70 ºC
Specifications Operating Voltage Range
10.8 to 13.2 V
Specifications Rated Voltage
12 V
Specifications Sensor Lead Wire Color
Yellow
