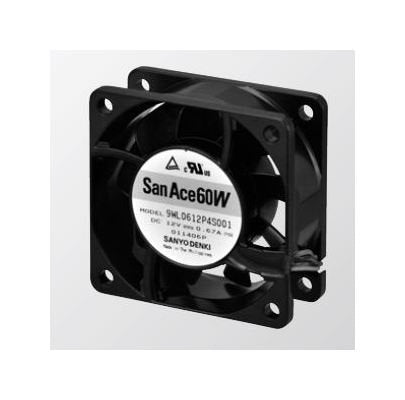

San Ace 60W Series Splash Proof Fan - 9WL0624P4J001
San Ace 60W Series Splash Proof Fan - 9WL0624P4J001
SKU:SAN-2e7a5d
Enhance cooling in any environment with the San Ace 60W Splash Proof Fan. Efficient, durable, low noise level.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
San Ace 60W Series Splash Proof Fan - 9WL0624P4J001
$29.99
Quantity: 1
Claim Your Seller Account
San Ace 60W Series Splash Proof Fan - 9WL0624P4J001
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The San Ace 60W Series Splash Proof Fan, with an aluminum frame and UL94V-1 rated plastic impeller, ensures reliable cooling in demanding environments. Operating at 24V with a PWM duty cycle range of 20%-100%, this fan delivers high airflow of up to 1.10 m³/min. With a noise level as low as 17 dBA and an expected 180,000-hour lifespan, it offers efficient and quiet cooling performance. Designed for durability and efficiency, this fan is ideal for both consumer and institutional applications.
Product Specifications
Specifications Anode Lead Wire Color
Red
Specifications Cathode Lead Wire Color
Black
Specifications Control Lead Wire Color
Brown

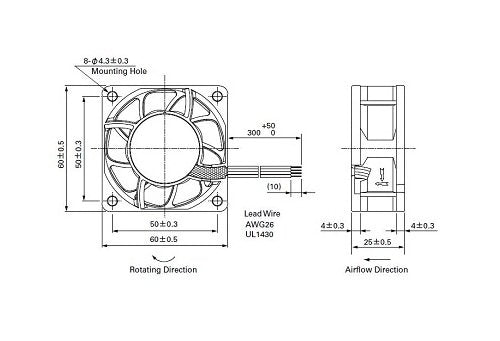

Specifications Dimensions
60Ã60Ã25 mm
Specifications Expected Life At 60c
180,000 hours
Specifications Frame Material
Aluminum (Black coating)
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Mass
110 g
Specifications Maximum Air Flow
1.10 m³/min | 38.8 ft³/min
Specifications Maximum Pulse Width Modulation Pwm Duty Cycle
100 %
Specifications Maximum Rated Current
0.19 A
Specifications Maximum Rated Input Power
4.56 W
Specifications Maximum Rated Speed
8,650 rpm
Specifications Maximum Sound Pressure Level
47 dBA
Specifications Maximum Static Pressure
182 Pa | 0.730 inH2O
Specifications Minimum Air Flow
0.28 m³/min | 9.8 ft³/min
Specifications Minimum Pulse Width Modulation Pwm Duty Cycle
20 %
Specifications Minimum Rated Current
0.02 A
Specifications Minimum Rated Input Power
0.48 W
Specifications Minimum Rated Speed
2200 rpm
Specifications Minimum Sound Pressure Level
17 dBA
Specifications Minimum Static Pressure
12.0 Pa | 0.048 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature
-20 to +70 ºC
Specifications Operating Voltage Range
21.6 to 26.4 V
Specifications Rated Voltage
24 V
Specifications Sensor Lead Wire Color
Yellow
