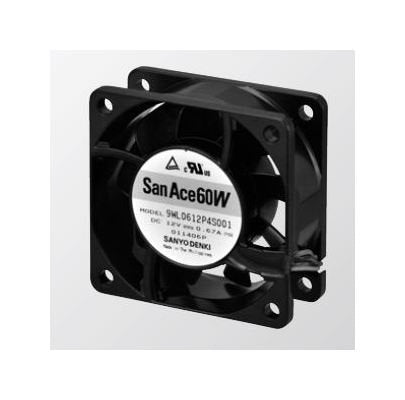

San Ace 60W Splash Proof Fan 12V
San Ace 60W Splash Proof Fan 12V
SKU:SAN-95d49a
High-performance San Ace 60W Splash Proof Fan with aluminum frame, UL94V-1 rated plastics impeller, and wide temperature range.
Regular price
$42.99
Regular price
Sale price
$42.99
Unit price
per
Initiate Order
San Ace 60W Splash Proof Fan 12V
$42.99
Quantity: 1
Claim Your Seller Account
San Ace 60W Splash Proof Fan 12V
$42.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The San Ace 60W Splash Proof Fan is a high-performance cooling solution designed for industrial and institutional applications. With an aluminum frame, UL94V-1 rated plastics impeller, and a wide operating temperature range, this fan ensures reliable and efficient operation in demanding environments. It meets stringent federal procurement standards, offering maximum airflow of 1.10 m³/min and adhering to strict NIST standards for durability and performance.
Product Specifications
Specifications Anode Lead Wire Color
Red
Specifications Cathode Lead Wire Color
Black
Specifications Control Lead Wire Color
Brown

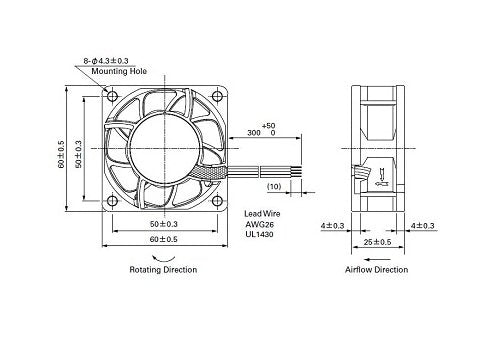

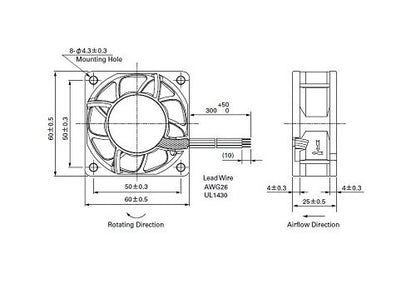

Specifications Dimensions
60Ã60Ã25 mm
Specifications Expected Life At 60c
180,000 hours
Specifications Frame Material
Aluminum (Black coating)
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Mass
110 g
Specifications Maximum Air Flow
1.10 m³/min | 38.8 ft³/min
Specifications Maximum Pulse Width Modulation Pwm Duty Cycle
100 %
Specifications Maximum Rated Current
0.39 A
Specifications Maximum Rated Input Power
4.68 W
Specifications Maximum Rated Speed
8,650 rpm
Specifications Maximum Sound Pressure Level
47 dBA
Specifications Maximum Static Pressure
182 Pa | 0.730 inH2O
Specifications Minimum Air Flow
0.13 m³/min | 4.8 ft³/min
Specifications Minimum Pulse Width Modulation Pwm Duty Cycle
20 %
Specifications Minimum Rated Current
0.03 A
Specifications Minimum Rated Input Power
0.36 W
Specifications Minimum Rated Speed
1,150 rpm
Specifications Minimum Sound Pressure Level
14 dBA
Specifications Minimum Static Pressure
3.3 Pa | 0.013 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature
-20 to +70 ºC
Specifications Operating Voltage Range
10.8 to 13.2 V
Specifications Rated Voltage
12 V
Specifications Sensor Lead Wire Color
Yellow
