The San Ace 60W Series Splash Proof Fan is designed for reliability and durability in challenging environments. With a frame and impeller made of UL94V-0 and UL94V-1 rated plastics, this fan ensures safety and performance. Operating at rated voltage of 24V with a maximum air flow of 1.06 m³/min, it offers efficient cooling while maintaining a quiet operation at 44 dBA. With an expected life of 40,000 hours at 60°C, this fan is ideal for industrial applications requiring long-term reliability.
Product Specifications
Specifications Anode Lead Wire Color
Red
Specifications Cathode Lead Wire Color
Black

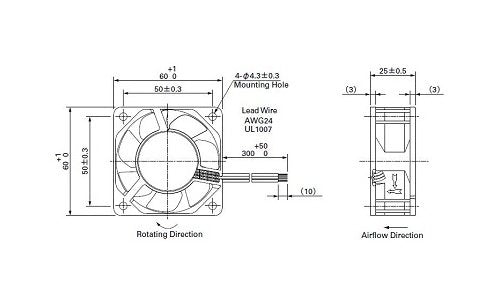

Specifications Dimensions
60Ã60Ã25 mm
Specifications Expected Life At 60c
40,000 hours
Specifications Frame Material
Plastics (Flammability: UL94V-0)
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Mass
110 g
Specifications Maximum Air Flow
1.06 m³/min | 37.1 ft³/min
Specifications Maximum Static Pressure
155.0 Pa | 0.622 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature
-20 to +60 ºC
Specifications Operating Voltage Range
21.6 to 26.4 V
Specifications Rated Current
0.2 A
Specifications Rated Input Power
4.8 W
Specifications Rated Speed
7,600 rpm
Specifications Rated Voltage
24 V
Specifications Sensor Lead Wire Color
Yellow
Specifications Sound Pressure Level
44 dBA
