San Ace 60W Splash Proof Fan, 24V DC, 60x60x25mm
San Ace 60W Splash Proof Fan, 24V DC, 60x60x25mm
SKU:SAN-7352d1
High-performance San Ace 60W Series Splash Proof Fan suitable for demanding environments, 24V DC, 60x60x25mm
Regular price
$19.99
Regular price
Sale price
$19.99
Unit price
per
Initiate Order
San Ace 60W Splash Proof Fan, 24V DC, 60x60x25mm
$19.99
Quantity: 1
Claim Your Seller Account
San Ace 60W Splash Proof Fan, 24V DC, 60x60x25mm
$19.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

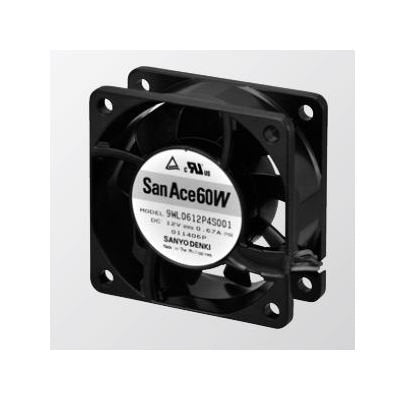

The San Ace 60W Series Splash Proof Fan is a reliable cooling solution designed for demanding environments. With an aluminum frame and UL94V-1 rated plastic impeller, it offers efficient cooling with a maximum airflow of 1.4 m³/min. Operating at 24V with PWM control, it ensures optimal performance from 2,900 to 11,000 rpm. This fan meets stringent durability standards with an expected life of 180,000 hours and operates in temperatures ranging from -20 to +70°C.
Product Specifications
Specifications Anode Lead Wire Color
Red
Specifications Cathode Lead Wire Color
Black
Specifications Control Lead Wire Color
Brown

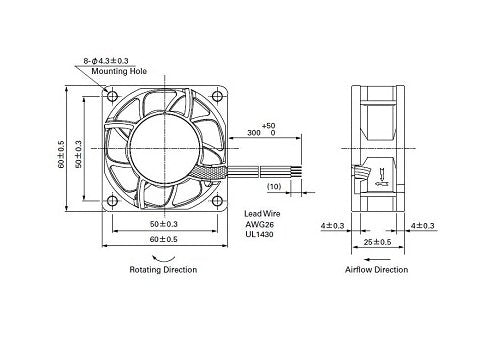

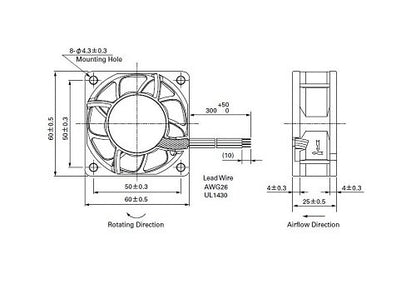

Specifications Dimensions
60Ã60Ã25 mm
Specifications Expected Life At 60c
180,000 hours
Specifications Frame Material
Aluminum (Black coating)
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Mass
110 g
Specifications Maximum Air Flow
1.4 m³/min | 49.4 ft³/min
Specifications Maximum Pulse Width Modulation Pwm Duty Cycle
100 %
Specifications Maximum Rated Current
0.34 A
Specifications Maximum Rated Input Power
8.16 W
Specifications Maximum Rated Speed
11,000 rpm
Specifications Maximum Sound Pressure Level
53 dBA
Specifications Maximum Static Pressure
300 Pa | 1.204 inH2O
Specifications Minimum Air Flow
0.36 m³/min | 12.7 ft³/min
Specifications Minimum Pulse Width Modulation Pwm Duty Cycle
20 %
Specifications Minimum Rated Current
0.03 A
Specifications Minimum Rated Input Power
0.72 W
Specifications Minimum Rated Speed
2,900 rpm
Specifications Minimum Sound Pressure Level
20 dBA
Specifications Minimum Static Pressure
20.8 Pa | 0.083 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature
-20 to +70 ºC
Specifications Operating Voltage Range
21.6 to 26.4 V
Specifications Rated Voltage
24 V
Specifications Sensor Lead Wire Color
Yellow
