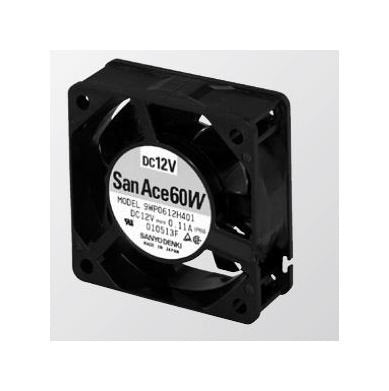

San Ace 60W Splash Proof Fan - 60x60x25 mm, 12V
San Ace 60W Splash Proof Fan - 60x60x25 mm, 12V
SKU:SAN-59929a
Reliable San Ace 60W Splash Proof Fan with UL94V-0 & UL94V-1 plastics, ideal for demanding environments. Quiet operation, durable design.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
San Ace 60W Splash Proof Fan - 60x60x25 mm, 12V
$24.99
Quantity: 1
Claim Your Seller Account
San Ace 60W Splash Proof Fan - 60x60x25 mm, 12V
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The San Ace 60W Series Splash Proof Fan is a reliable cooling solution designed for efficient performance in challenging environments. Constructed with UL94V-0 and UL94V-1 rated plastics, this fan ensures safety and durability. Operating within a voltage range of 10.2 to 13.2 V, it delivers a maximum air flow of 0.78 m³/min and can withstand temperatures from -20 to +60 °C. With a sound pressure level of 39 dBA and a rated speed of 5,600 rpm, this fan offers a quiet yet powerful cooling solution. Ideal for institutional and government applications requiring longevity and performance.
Product Specifications
Specifications Anode Lead Wire Color
Red
Specifications Cathode Lead Wire Color
Black

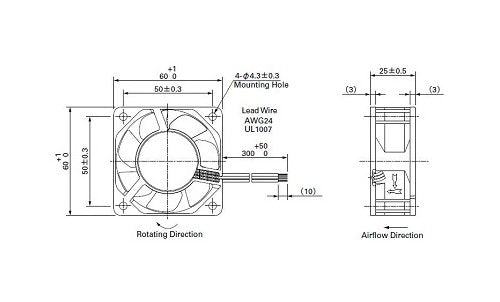

Specifications Dimensions
60Ã60Ã25 mm
Specifications Expected Life At 60c
40,000 hours
Specifications Frame Material
Plastics (Flammability: UL94V-0)
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Mass
110 g
Specifications Maximum Air Flow
0.78 m³/min | 27.5 ft³/min
Specifications Maximum Static Pressure
87.3 Pa | 0.351 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature
-20 to +60 ºC
Specifications Operating Voltage Range
10.2 to 13.2 V
Specifications Rated Current
0.21 A
Specifications Rated Input Power
2.52 W
Specifications Rated Speed
5,600 rpm
Specifications Rated Voltage
12 V
Specifications Sensor Lead Wire Color
Yellow
Specifications Sound Pressure Level
39 dBA
