San Ace 60W Splash Proof Fan - 9WP0612H401
San Ace 60W Splash Proof Fan - 9WP0612H401
SKU:SAN-169ecf
High-performance San Ace 60W 9WP0612H401 Splash Proof Fan for efficient and quiet cooling in demanding environments.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
San Ace 60W Splash Proof Fan - 9WP0612H401
$29.99
Quantity: 1
Claim Your Seller Account
San Ace 60W Splash Proof Fan - 9WP0612H401
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

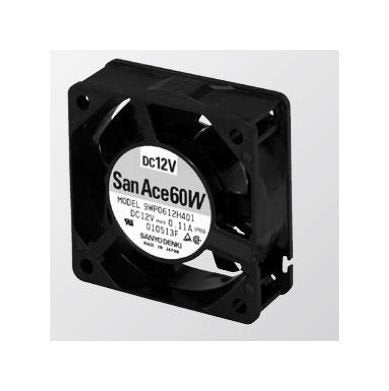

The San Ace 60W Series Splash Proof Fan, model 9WP0612H401, is crafted with premium UL94V-0 rated plastics for the frame and UL94V-1 rated plastics for the impeller, ensuring top-notch safety. Operating at 12V with an air flow of 0.53 m³/min and a maximum static pressure of 40.2 Pa, this fan offers efficient cooling in temperatures ranging from -20 to +70 °C. With a rated speed of 3,800 rpm and a sound pressure level of 28 dBA, it combines high performance with quiet operation. Its durable build guarantees an expected life of 60,000 hours at 60°C, making it ideal for demanding environments like government and institutional settings.
Product Specifications
Specifications Anode Lead Wire Color
Red
Specifications Cathode Lead Wire Color
Black

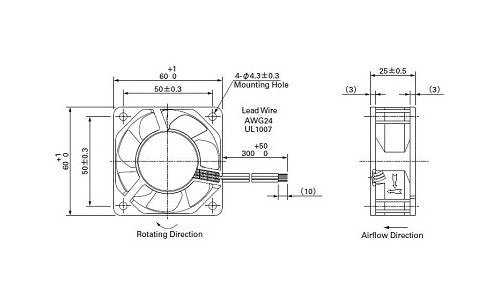

Specifications Dimensions
60Ã60Ã25 mm
Specifications Expected Life At 60c
60,000 hours
Specifications Frame Material
Plastics (Flammability: UL94V-0)
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Mass
110 g
Specifications Maximum Air Flow
0.53 m³/min | 18.7 ft³/min
Specifications Maximum Static Pressure
40.2 Pa | 0.161 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature
-20 to +70 ºC
Specifications Operating Voltage Range
10.2 to 13.8 V
Specifications Rated Current
0.11 A
Specifications Rated Input Power
1.32 W
Specifications Rated Speed
3,800 rpm
Specifications Rated Voltage
12 V
Specifications Sensor Lead Wire Color
Yellow
Specifications Sound Pressure Level
28 dBA
