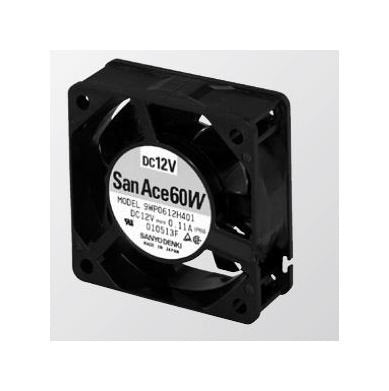

San Ace 60W Splash Proof Fan, 9WP0648H401
San Ace 60W Splash Proof Fan, 9WP0648H401
SKU:SAN-49610a
Reliable San Ace 60W Splash Proof Fan designed for industrial applications, featuring flame-retardant materials and high performance.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
San Ace 60W Splash Proof Fan, 9WP0648H401
$34.99
Quantity: 1
Claim Your Seller Account
San Ace 60W Splash Proof Fan, 9WP0648H401
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The San Ace 60W Series Splash Proof Fan, model 9WP0648H401, is a reliable and durable fan designed for industrial and institutional applications. With a frame and impeller made of flame-retardant plastics, this fan ensures safety and performance. Operating at a rated voltage of 48V, it offers a maximum air flow of 0.53 m³/min and a maximum static pressure of 40.2 Pa. Built to withstand non-condensing storage temperatures from -30 to +70°C and operating temperatures from -20 to +70°C, this fan has an expected life of 60,000 hours at 60°C. Ideal for critical cooling needs in government and institutional settings, the San Ace 60W Splash Proof Fan is a dependable choice that meets stringent procurement standards.
Product Specifications
Specifications Anode Lead Wire Color
Red
Specifications Cathode Lead Wire Color
Black

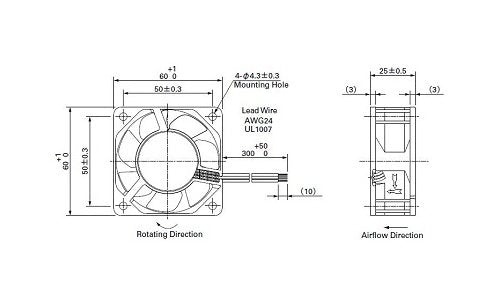

Specifications Dimensions
60Ã60Ã25 mm
Specifications Expected Life At 60c
60,000 hours
Specifications Frame Material
Plastics (Flammability: UL94V-0)
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Mass
110 g
Specifications Maximum Air Flow
0.53 m³/min | 18.7 ft³/min
Specifications Maximum Static Pressure
40.2 Pa | 0.161 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature
-20 to +70 ºC
Specifications Operating Voltage Range
40 to 53 V
Specifications Rated Current
0.04 A
Specifications Rated Input Power
1.92 W
Specifications Rated Speed
3,800 rpm
Specifications Rated Voltage
48 V
Specifications Sensor Lead Wire Color
Yellow
Specifications Sound Pressure Level
28 dBA
