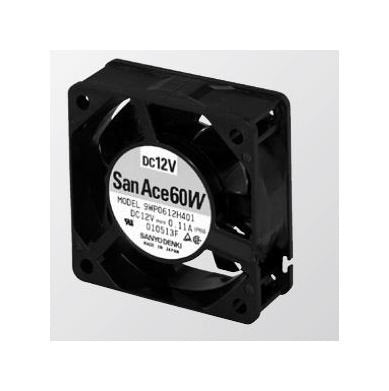

San Ace 60W Splash Proof Fan, Model 9WP0624H401
San Ace 60W Splash Proof Fan, Model 9WP0624H401
SKU:SAN-5dd5b3
San Ace 60W Splash Proof Fan for efficient and durable cooling in demanding environments.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
San Ace 60W Splash Proof Fan, Model 9WP0624H401
$34.99
Quantity: 1
Claim Your Seller Account
San Ace 60W Splash Proof Fan, Model 9WP0624H401
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The San Ace 60W Splash Proof Fan, Model 9WP0624H401, is a high-performance cooling solution designed for demanding environments. With a Frame Material of Plastics (Flammability: UL94V-0) and Impeller Material of Plastics (Flammability: UL94V-1), this fan ensures safety and durability. Operating at a Rated Voltage of 24 V and offering Maximum Air Flow of 0.53 m³/min, it provides efficient cooling with a long Expected Life of 60,000 hours at 60ºC. The fan meets rigorous standards for noise levels, with a Sound Pressure Level of 28 dBA, making it ideal for both consumer and institutional applications.
Product Specifications
Specifications Anode Lead Wire Color
Red
Specifications Cathode Lead Wire Color
Black

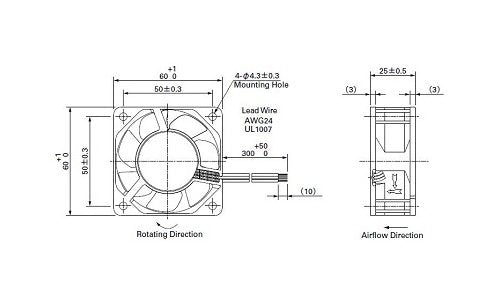

Specifications Dimensions
60Ã60Ã25 mm
Specifications Expected Life At 60c
60,000 hours
Specifications Frame Material
Plastics (Flammability: UL94V-0)
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Mass
110 g
Specifications Maximum Air Flow
0.53 m³/min | 18.7 ft³/min
Specifications Maximum Static Pressure
40.2 Pa | 0.161 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature
-20 to +70 ºC
Specifications Operating Voltage Range
20.4 to 27.6 V
Specifications Rated Current
0.06 A
Specifications Rated Input Power
1.44 W
Specifications Rated Speed
3,800 rpm
Specifications Rated Voltage
24 V
Specifications Sensor Lead Wire Color
Yellow
Specifications Sound Pressure Level
28 dBA
