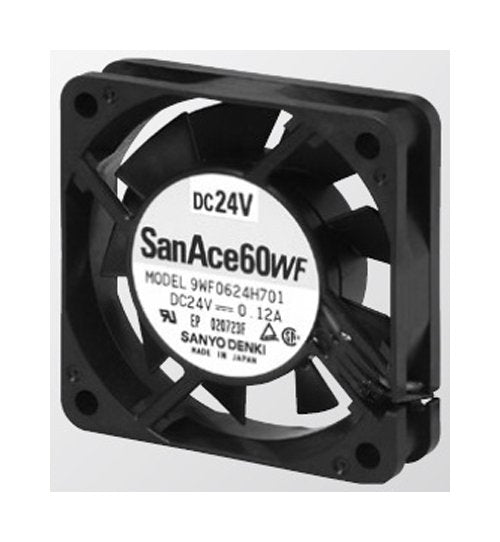

San Ace 60WF Oil Proof Fan - 60 x 60 x 15 mm, 24V, 6800 rpm
San Ace 60WF Oil Proof Fan - 60 x 60 x 15 mm, 24V, 6800 rpm
SKU:SAN-a1a9cb
Reliable San Ace 60WF Oil Proof Fan - 60 x 60 x 15 mm, 24V, 6800 rpm. UL94V-0 Compliant, Long Lifespan, Low Noise
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
San Ace 60WF Oil Proof Fan - 60 x 60 x 15 mm, 24V, 6800 rpm
$29.99
Quantity: 1
Claim Your Seller Account
San Ace 60WF Oil Proof Fan - 60 x 60 x 15 mm, 24V, 6800 rpm
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The San Ace 60WF Oil Proof Fan is a top-of-the-line cooling solution designed for reliability and performance. With a sturdy plastic frame and impeller meeting UL94V-0 flammability standards, this fan ensures safe and efficient operation. Operating within a wide temperature range of -20 to +70 °C, and boasting a lifespan of 40,000 hours at 60°C, this fan delivers consistent airflow of 0.52 m³/min while maintaining a low sound pressure level of 44 dBA. Perfect for demanding industrial environments that require durability and precision cooling.
Product Specifications
Specifications Anode Lead Wire Color
Red
Specifications Cathode Lead Wire Color
Black
Specifications Dimensions
60 x 60 x 15 mm
Specifications Expected Life At 60c
40,000 hours
Specifications Frame Material
Plastics (Flammability: UL94V-0)
Specifications Impeller Material
Plastics (Flammability: UL94V-0)
Specifications Mass
62 g
Specifications Maximum Air Flow
0.52 m³/min | 18.3 ft³/min
Specifications Maximum Static Pressure
95 Pa | 0.38 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature Range
-20 to +70 ºC
Specifications Operating Voltage Range
20.4 to 27.6 V
Specifications Rated Current
0.12 A
Specifications Rated Input Power
2.88 W
Specifications Rated Speed
6800 rpm
Specifications Rated Voltage
24 V
Specifications Sensor Lead Wire Color
Yellow
Specifications Sound Pressure Level
44 dBA
