San Ace 60WF Oil Proof Fan - 9WF0624H401
San Ace 60WF Oil Proof Fan - 9WF0624H401
SKU:SAN-d3580c
High-performance San Ace 60WF Oil Proof Fan - 9WF0624H401. UL94V-0 plastics, 24V, 6500 rpm, 0.67 m³/min airflow, 41 dBA, -20 to +70 ºC.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
San Ace 60WF Oil Proof Fan - 9WF0624H401
$29.99
Quantity: 1
Claim Your Seller Account
San Ace 60WF Oil Proof Fan - 9WF0624H401
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

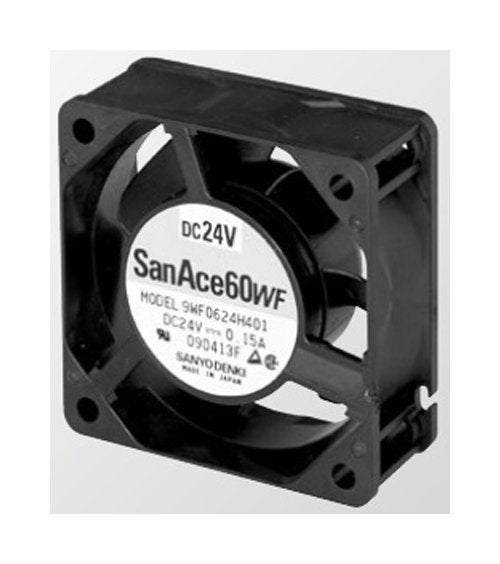

The San Ace 60WF Oil Proof Fan, model 9WF0624H401, is a reliable cooling solution designed for industrial applications. With dimensions of 60 x 60 x 25 mm and a lightweight mass of 110 g, this fan features a frame and impeller made of UL94V-0 rated plastics, ensuring high durability and safety. Operating at a rated voltage of 24 V with a rated speed of 6500 rpm, it delivers a maximum airflow of 0.67 m³/min and can withstand temperatures ranging from -20 to +70 ºC. With a sound pressure level of 41 dBA and an expected life of 40,000 hours at 60ºC, this fan is built to provide long-lasting, efficient cooling performance.
Product Specifications
Specifications Anode Lead Wire Color
Red
Specifications Cathode Lead Wire Color
Black
Specifications Dimensions
60 x 60 x 25 mm
Specifications Expected Life At 60c
40,000 hours
Specifications Frame Material
Plastics (Flammability: UL94V-0)
Specifications Impeller Material
Plastics (Flammability: UL94V-0)
Specifications Mass
110 g
Specifications Maximum Air Flow
0.67 m³/min | 23.6 ft³/min
Specifications Maximum Static Pressure
97 Pa | 0.38 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature Range
-20 to +70 ºC
Specifications Operating Voltage Range
20.4 to 27.6 V
Specifications Rated Current
0.15 A
Specifications Rated Input Power
3.6 W
Specifications Rated Speed
6500 rpm
Specifications Rated Voltage
24 V
Specifications Sensor Lead Wire Color
Yellow
Specifications Sound Pressure Level
41 dBA
