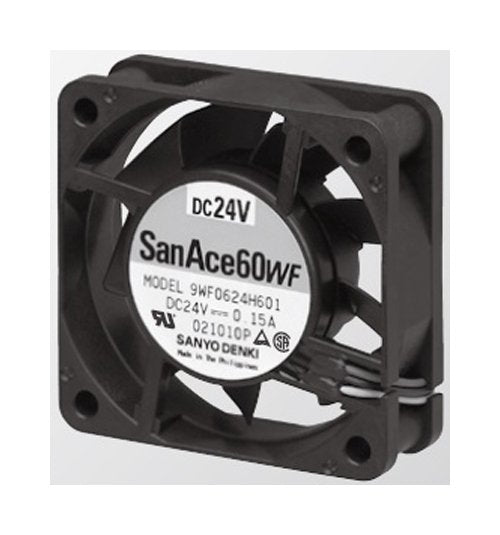

San Ace 60WF Oil Proof Fan, Model 9WF0624H601
San Ace 60WF Oil Proof Fan, Model 9WF0624H601
SKU:SAN-b735e7
High-performance San Ace 60WF Oil Proof Fan for reliable cooling in consumer and institutional settings.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
San Ace 60WF Oil Proof Fan, Model 9WF0624H601
$29.99
Quantity: 1
Claim Your Seller Account
San Ace 60WF Oil Proof Fan, Model 9WF0624H601
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The San Ace 60WF Oil Proof Fan, model 9WF0624H601, is a high-quality cooling solution designed for both consumer and institutional applications. With dimensions of 60 x 60 x 20 mm and a mass of 80 g, this fan features a frame and impeller made of UL94V-0 plastics, ensuring exceptional durability. Operating at a rated voltage of 24 V and a speed of 6600 rpm, it delivers a maximum airflow of 0.69 m³/min and a sound pressure level of 42 dBA. With an expected life of 40,000 hours at 60°C, this fan is a reliable and efficient choice for cooling systems in various settings.
Product Specifications
Specifications Anode Lead Wire Color
Red
Specifications Cathode Lead Wire Color
Black
Specifications Dimensions
60 x 60 x 20 mm
Specifications Expected Life At 60c
40,000 hours
Specifications Frame Material
Plastics (Flammability: UL94V-0)
Specifications Impeller Material
Plastics (Flammability: UL94V-0)
Specifications Mass
80 g
Specifications Maximum Air Flow
0.69 m³/min | 24.3 ft³/min
Specifications Maximum Static Pressure
114 Pa | 0.45 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature Range
-20 to +70 ºC
Specifications Operating Voltage Range
12 to 27.6 V
Specifications Rated Current
0.15 A
Specifications Rated Input Power
3.6 W
Specifications Rated Speed
6600 rpm
Specifications Rated Voltage
24 V
Specifications Sensor Lead Wire Color
Yellow
Specifications Sound Pressure Level
42 dBA
