San Ace 80 AC Fan 109S053

San Ace 80 AC Fan 109S053

SKU:SAN-65d1dd

San Ace 80 AC Fan 109S053 - High-performance cooling solution for industrial & institutional use.

Regular price $59.99
Regular price Sale price $59.99
Sale

Initiate Order

San Ace 80 AC Fan 109S053

San Ace 80 AC Fan 109S053

$59.99

Quantity: 1

Claim Your Seller Account

San Ace 80 AC Fan 109S053

San Ace 80 AC Fan 109S053

$59.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

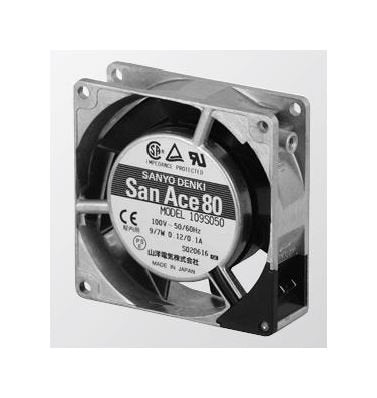

The San Ace 80 AC Fan 109S053 is a high-performance cooling solution designed for industrial and institutional applications. With dimensions of 80×80×25 mm and a lightweight aluminum frame, this fan ensures optimal airflow and heat dissipation. The impeller is made of UL94V-1 rated plastics, guaranteeing safety. Operating at 115V and meeting stringent dielectric strength and storage temperature standards, this fan offers reliable performance in diverse environments. Rated for 25,000 hours at 60°C, it provides long-lasting cooling efficiency.

Product Specifications

Specifications Current
0.1 /0.08 A
Specifications Dielectric Strength
50/60Hz 1,500VAC 1minute (between lead conductor and frame)
Specifications Dimensions

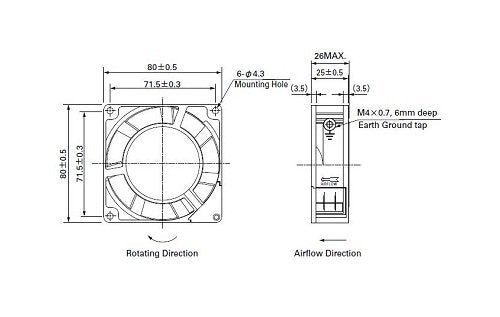

80×80×25 mm
Specifications Expected Life At 60c
25000 hours
Specifications Frame Material
Aluminum
Specifications Frequency
50/60 Hz
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Input
9/7 W
Specifications Locked Rotor Current
0.11/0.09 A
Specifications Mass
270 g
Specifications Maximum Air Flow
0.63/0.76 m³/min | 22.3/26.9 ft³/min
Specifications Maximum Static Pressure
27.5/38.3 Pa | 0.110/0.154 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature
-30 to +60 ºC
Specifications Operating Voltage Range
Voltage of each model ±10%
Specifications Rated Speed
2,650/3,100 rpm
Specifications Rated Voltage
115 V
Specifications Sound Pressure Level
30/33 dBA
