San Ace 80 Series AC Fan
San Ace 80 Series AC Fan
SKU:SAN-99c6d9
Reliable San Ace 80 Series AC Fan for efficient cooling in various applications. UL94V-1 rated impeller, 230V, 1.0 m³/min airflow, and 33 dBA noise level.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
San Ace 80 Series AC Fan
$59.99
Quantity: 1
Claim Your Seller Account
San Ace 80 Series AC Fan
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

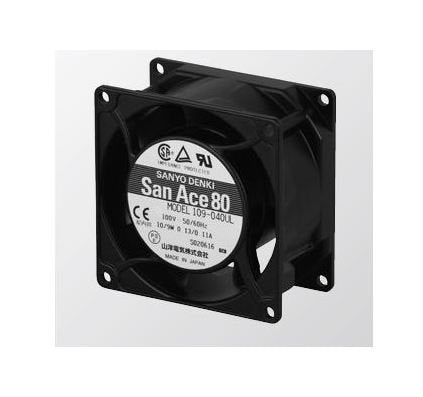

The San Ace 80 Series AC Fan, model 109-044UL, offers reliable cooling performance ideal for a wide range of applications. With dimensions of 80x80x42 mm and a lightweight aluminum frame, this fan is durable and efficient. The impeller is made of UL94V-1 rated plastics, ensuring safety and compliance. Operating at a rated voltage of 230V with a frequency of 50/60Hz, this fan provides a maximum airflow of 1.0 m³/min and a maximum static pressure of 35.3 Pa. The fan operates quietly at 33 dBA and has an expected life of 25,000 hours at 60°C. Trust San Ace for dependable cooling solutions that meet institutional procurement standards.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Current
0.06/0.05 A
Specifications Dielectric Strength
50/60Hz 1,500VAC 1minute (between lead conductor and frame)

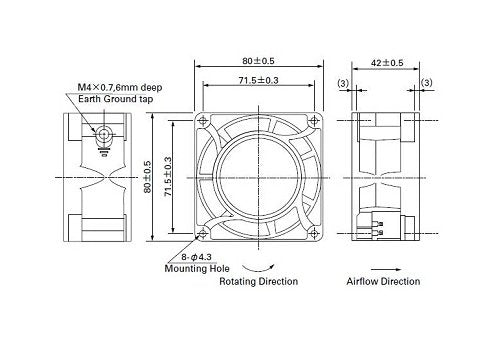

Specifications Dimensions
80Ã80Ã42 mm
Specifications Expected Life At 60c
25000 hours
Specifications Frame Material
Aluminum
Specifications Frequency
50/60 Hz
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Input
10/9 W
Specifications Locked Rotor Current
0.07/0.06 A
Specifications Mass
410 g
Specifications Maximum Air Flow
0.85/1.0 m³/min | 30.0/35.3 ft³/min
Specifications Maximum Static Pressure
24.5/35.3 Pa | 0.098/0.142 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature
-30 to +60 ºC
Specifications Operating Voltage Range
Voltage of each model ±10%
Specifications Rated Speed
2,650/3,100 rpm
Specifications Rated Voltage
230 V
Specifications Sound Pressure Level
30/33 dBA
