San Ace 80 Series AC Fan - 109-041UL
San Ace 80 Series AC Fan - 109-041UL
SKU:SAN-8c9313
Reliable San Ace 80 Series AC Fan for high-performance cooling needs. Dimensions: 80x80x42mm, Aluminum frame, UL94V-1 rated plastics, 200V, 1.0 m³/min airflow, 33 dBA.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
San Ace 80 Series AC Fan - 109-041UL
$45.99
Quantity: 1
Claim Your Seller Account
San Ace 80 Series AC Fan - 109-041UL
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The San Ace 80 Series AC Fan, model 109-041UL, is a reliable cooling solution designed for high-performance systems. With dimensions of 80x80x42mm and a lightweight aluminum frame, this fan ensures efficient heat dissipation. The impeller, made of UL94V-1 rated plastics, guarantees safety and durability. Operating at a rated voltage of 200V and a frequency of 50/60Hz, this fan delivers a maximum airflow of 1.0 m³/min while maintaining a low sound pressure level of 33 dBA. Tested for dielectric strength, non-condensing storage, and operating temperature ranges, this fan offers a long service life of up to 25,000 hours.
Product Specifications
Specifications Current
0.07/0.06 A
Specifications Dielectric Strength
50/60Hz 1,500VAC 1minute (between lead conductor and frame)

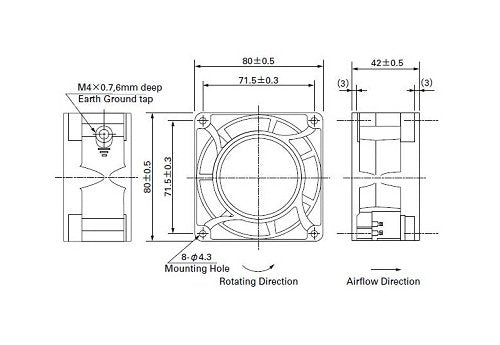

Specifications Dimensions
80Ã80Ã42 mm
Specifications Expected Life At 60c
25000 hours
Specifications Frame Material
Aluminum
Specifications Frequency
50/60 Hz
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Input
10/9 W
Specifications Locked Rotor Current
0.08/0.07 A
Specifications Mass
410 g
Specifications Maximum Air Flow
0.85/1.0 m³/min | 30.0/35.3 ft³/min
Specifications Maximum Static Pressure
24.5/35.3 Pa | 0.098/0.142 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature
-30 to +60 ºC
Specifications Operating Voltage Range
Voltage of each model ±10%
Specifications Rated Speed
2,650/3,100 rpm
Specifications Rated Voltage
200 V
Specifications Sound Pressure Level
30/33 dBA
