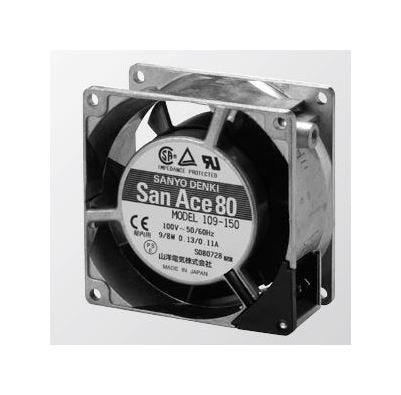

San Ace 80 Series AC Fan 109-154

Name: San Ace 80 Series AC Fan 109-154
Brand: Marsh Electronics, Inc.
SKU: SAN-b72539
Price: 39.99 USD
Availability: OutOfStock

SKU:SAN-b72539

High-performance San Ace 80 Series AC Fan for industrial cooling, with UL94V-1 rated materials & long lifespan.

$39.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The San Ace 80 Series AC Fan 109-154 is a high-performance cooling solution designed for industrial and institutional applications. With dimensions of 80x80x38 mm and a durable aluminum frame, this fan ensures efficient heat dissipation. It features UL94V-1 rated plastics impeller, meeting flammability standards. Operating at 230V and 50/60Hz, it delivers a maximum airflow of 1.05 m³/min and a maximum static pressure of 44.1 Pa. The fan operates within a wide temperature range (-30 to +60 °C) and has an expected lifespan of 25,000 hours at 60°C, making it a reliable choice for critical cooling needs.

Product Specifications

Specifications Current

0.06/0.05 A

Specifications Dielectric Strength

50/60Hz 1,500VAC 1minute (between lead conductor and frame)

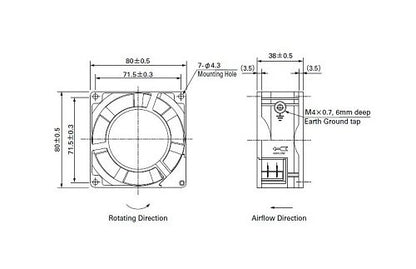

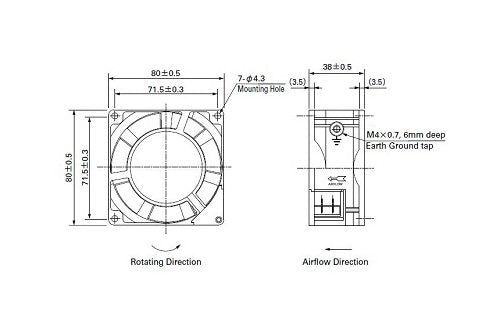

Specifications Dimensions

80Ã80Ã38 mm

Specifications Expected Life At 60c

25000 hours

Specifications Frame Material

Aluminum

Specifications Frequency

50/60 Hz

Specifications Impeller Material

Plastics (Flammability: UL94V-1)

Specifications Input

9/8 W

Specifications Locked Rotor Current

0.08/0.07 A

Specifications Mass

400 g

Specifications Maximum Air Flow

0.9/1.05 mÂ³/min | 31.8/37.1 ftÂ³/min

Specifications Maximum Static Pressure

31.4/44.1 Pa | 0.126/0.177 inH2O

Specifications Non Condensing Storage Temperature

-30 to +70 ÂºC

Specifications Operating Temperature

-30 to +60 ÂºC

Specifications Operating Voltage Range

Voltage of each model Â±10%

Specifications Rated Speed

2,700/3,150 rpm

Specifications Rated Voltage

230 V

Specifications Sound Pressure Level

35/39 dBA
