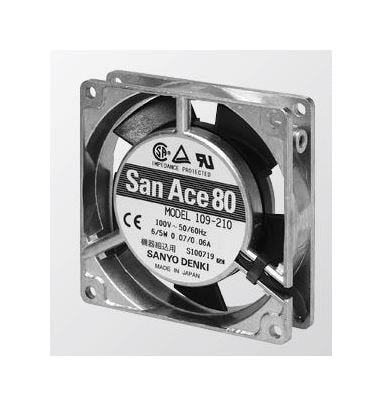

San Ace 80 Series AC Fan - 109-210, 80x80x20mm
San Ace 80 Series AC Fan - 109-210, 80x80x20mm
SKU:SAN-20f8cf
High-performance San Ace 80 Series AC Fan - perfect for consumer and institutional cooling needs.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
San Ace 80 Series AC Fan - 109-210, 80x80x20mm
$39.99
Quantity: 1
Claim Your Seller Account
San Ace 80 Series AC Fan - 109-210, 80x80x20mm
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The San Ace 80 Series AC Fan, model 109-210, is a high-performance cooling solution perfect for both consumer and institutional buyers. With a durable aluminum frame and UL94V-1 rated plastic impeller, it meets stringent safety standards. Operating at a rated voltage of 100V, this fan offers reliable cooling with a maximum air flow of 0.53 m³/min and maximum static pressure of 31.4Pa. It operates quietly at 31 dBA and has an expected life of 25,000 hours at 60°C, making it ideal for long-term usage in various settings.
Product Specifications
Specifications Current
0.07/0.06 A
Specifications Dielectric Strength
50/60Hz 1,500VAC 1minute (between lead conductor and frame)

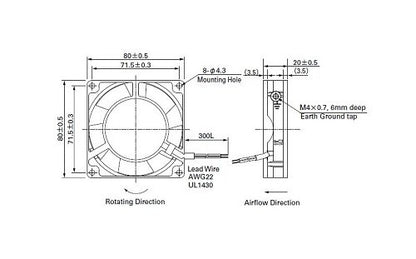

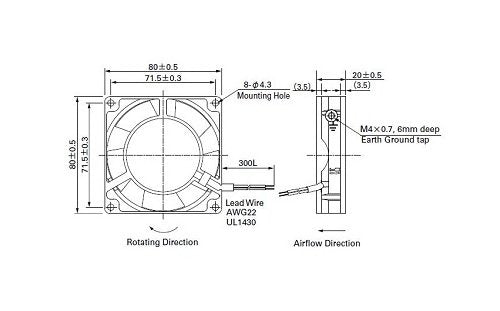

Specifications Dimensions
80Ã80Ã20 mm
Specifications Expected Life At 60c
25000 hours
Specifications Frame Material
Aluminum
Specifications Frequency
50/60 Hz
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Input
6/5 W
Specifications Lead Wire Color
Black
Specifications Lead Wire Quantity
2
Specifications Locked Rotor Current
0.07/0.06 A
Specifications Mass
180 g
Specifications Maximum Air Flow
0.44/0.53 m³/min | 15.5/18.7 ft³/min
Specifications Maximum Static Pressure
23.5/31.4 Pa | 0.094/0.126 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature
-30 to +60 ºC
Specifications Operating Voltage Range
Voltage of each model ±10%
Specifications Rated Speed
2,250/2,700 rpm
Specifications Rated Voltage
100 V
Specifications Sound Pressure Level
26/31 dBA
