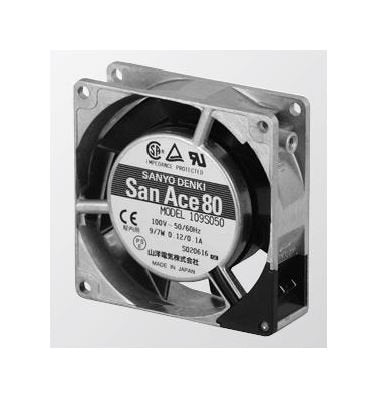

San Ace 80 Series AC Fan - 109S030
San Ace 80 Series AC Fan - 109S030
SKU:SAN-eea80d
Compact and efficient San Ace 80 Series AC Fan - 109S030 with UL94V-1 rated plastics impeller for optimal cooling performance.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
San Ace 80 Series AC Fan - 109S030
$34.99
Quantity: 1
Claim Your Seller Account
San Ace 80 Series AC Fan - 109S030
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The San Ace 80 Series AC Fan 109S030 is a reliable cooling solution designed for optimal performance in compact spaces. With dimensions of 80×80×25 mm and a lightweight aluminum frame, this fan ensures efficient heat dissipation. The impeller is made of UL94V-1 rated plastics, guaranteeing safety and durability. Operating at a rated voltage of 100V with a frequency of 50/60Hz, this fan delivers a maximum airflow of 0.63 m³/min and a maximum static pressure of 28.4 Pa. Whether for consumer or institutional use, this fan meets high standards of quality and performance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Current
0.12/0.1 A
Specifications Dielectric Strength
50/60Hz 1,500VAC 1minute (between lead conductor and frame)
Specifications Dimensions
80Ã80Ã25 mm
Specifications Expected Life At 60c
25000 hours
Specifications Frame Material
Aluminum
Specifications Frequency
50/60 Hz
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Input
9/7 W
Specifications Locked Rotor Current
0.13/0.11 A
Specifications Mass
270 g
Specifications Maximum Air Flow
0.55/0.63 m³/min | 19.4/22.3 ft³/min
Specifications Maximum Static Pressure
21.6/28.4 Pa | 0.087/0.114 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature
-30 to +60 ºC
Specifications Operating Voltage Range
Voltage of each model ±10%
Specifications Rated Speed
2,350/2,700 rpm
Specifications Rated Voltage
100 V
Specifications Sound Pressure Level
28/30 dBA
