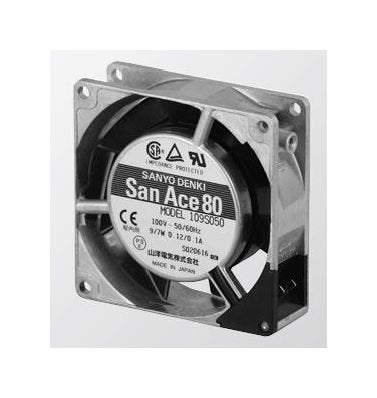

San Ace 80 Series AC Fan - 109S050
San Ace 80 Series AC Fan - 109S050
SKU:SAN-473e65
Efficient and reliable San Ace 80 Series AC Fan, 80x80x25 mm, aluminum frame, UL94V-1 plastic impeller, 100V, 2,650/3,100 rpm, 25,000 hours life at 60ºC.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
San Ace 80 Series AC Fan - 109S050
$29.99
Quantity: 1
Claim Your Seller Account
San Ace 80 Series AC Fan - 109S050
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The San Ace 80 Series AC Fan model 109S050 is a high-quality cooling solution for various applications. With dimensions of 80x80x25 mm and an aluminum frame, this fan is durable and efficient. Its UL94V-1 rated plastic impeller ensures safety, and it complies with stringent dielectric strength tests. Operating at 100V with a locked rotor current of 0.13/0.11A and a rated speed of 2,650/3,100 rpm, this fan delivers optimal airflow and pressure. Designed for reliability, it has an expected life of 25,000 hours at 60ºC.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Current
0.12/0.1 A
Specifications Dielectric Strength
50/60Hz 1,500VAC 1minute (between lead conductor and frame)

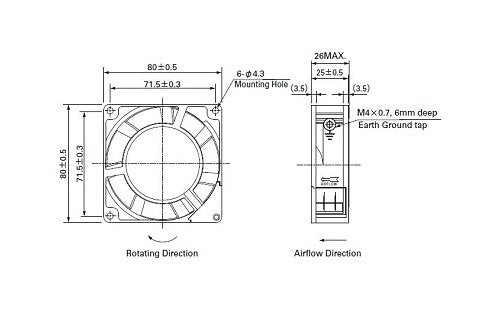

Specifications Dimensions
80Ã80Ã25 mm
Specifications Expected Life At 60c
25000 hours
Specifications Frame Material
Aluminum
Specifications Frequency
50/60 Hz
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Input
9/7 W
Specifications Locked Rotor Current
0.13/0.11 A
Specifications Mass
270 g
Specifications Maximum Air Flow
0.63/0.76 m³/min | 22.3/26.9 ft³/min
Specifications Maximum Static Pressure
27.5/38.3 Pa | 0.110/0.154 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature
-30 to +60 ºC
Specifications Operating Voltage Range
Voltage of each model ±10%
Specifications Rated Speed
2,650/3,100 rpm
Specifications Rated Voltage
100 V
Specifications Sound Pressure Level
30/33 dBA
