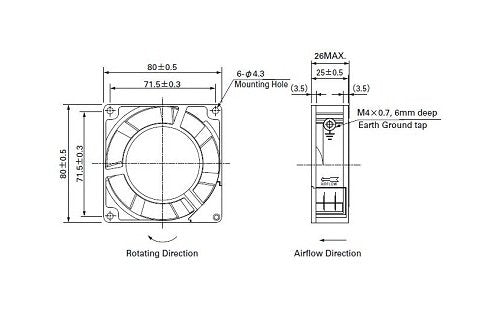

  • San Ace 80 Series AC Fan - 80×80×25 mm, 200V - Image 2
1 2
Marsh Electronics, Inc. →

San Ace 80 Series AC Fan - 80×80×25 mm, 200V

San Ace 80 Series AC Fan - 80×80×25 mm, 200V

SAN-320070

High-performance San Ace 80 Series AC Fan with aluminum frame, UL94V-1 plastics impeller, and efficient cooling, ideal for various applications.

$34.99
$34.99
Sale

Initiate Order

San Ace 80 Series AC Fan - 80×80×25 mm, 200V

San Ace 80 Series AC Fan - 80×80×25 mm, 200V

$34.99

Quantity: 1

Claim Your Seller Account

San Ace 80 Series AC Fan - 80×80×25 mm, 200V

San Ace 80 Series AC Fan - 80×80×25 mm, 200V

$34.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The San Ace 80 Series AC Fan is a high-performance cooling solution designed for both consumer and institutional buyers. With a durable aluminum frame and UL94V-1 rated plastics impeller, this fan ensures reliable and safe operation. Operating within a wide temperature range and boasting a dielectric strength of 1,500VAC, it meets stringent quality standards. Delivering a maximum air flow of 0.63 m³/min and a rated speed of 2,700 rpm, this fan offers efficient cooling with a low noise level of 30 dBA. Benefit from its long lifespan of 25,000 hours at 60ºC, making it an ideal choice for various applications.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Specifications Current
0.06/0.05 A
Specifications Dielectric Strength
50/60Hz 1,500VAC 1minute (between lead conductor and frame)
Specifications Dimensions
80×80×25 mm
Specifications Expected Life At 60c
25000 hours
Specifications Frame Material
Aluminum
Specifications Frequency
50/60 Hz
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Input
9/7 W
Specifications Locked Rotor Current
0.06/0.05 A
Specifications Mass
270 g
Specifications Maximum Air Flow
0.55/0.63 m³/min | 19.4/22.3 ft³/min
Specifications Maximum Static Pressure
21.6/28.4 Pa | 0.087/0.114 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature
-30 to +60 ºC
Specifications Operating Voltage Range
Voltage of each model ±10%
Specifications Rated Speed
2,350/2,700 rpm
Specifications Rated Voltage
200 V
Specifications Sound Pressure Level
28/30 dBA
