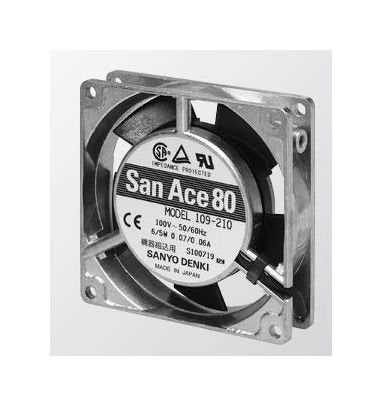

San Ace 80 Series AC Fan - 80x80x20mm, 115V, Aluminum Frame

Name: San Ace 80 Series AC Fan - 80x80x20mm, 115V, Aluminum Frame
Brand: Marsh Electronics, Inc.
SKU: SAN-82bc35
Price: 32.99 USD
Availability: OutOfStock

SKU:SAN-82bc35

Enhance cooling efficiency with the San Ace 80 Series AC Fan - reliable, quiet, and durable.

$32.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The San Ace 80 Series AC Fan is a high-performance cooling solution designed to meet the needs of both consumer and institutional buyers. With dimensions of 80x80x20 mm and a lightweight aluminum frame, this fan guarantees durability and efficient heat dissipation. Its UL94V-1 compliant plastic impeller ensures safety, while the dielectric strength of 1,500VAC offers reliable operation. Operating at a rated speed of 2,250/2,700 rpm, this fan delivers a maximum airflow of 0.44/0.53 m³/min and a maximum static pressure of 23.5/31.4 Pa, ensuring optimal cooling performance. The fan's whisper-quiet operation at 26/31 dBA makes it suitable for various applications, with an expected lifespan of 25,000 hours at 60°C.

Product Specifications

Specifications Current

0.06/0.05 A

Specifications Dielectric Strength

50/60Hz 1,500VAC 1minute (between lead conductor and frame)

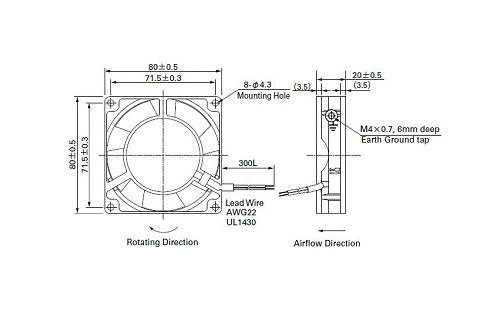

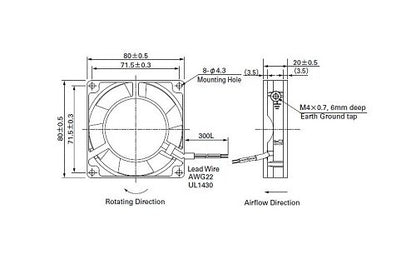

Specifications Dimensions

80Ã80Ã20 mm

Specifications Expected Life At 60c

25000 hours

Specifications Frame Material

Aluminum

Specifications Frequency

50/60 Hz

Specifications Impeller Material

Plastics (Flammability: UL94V-1)

Specifications Input

6/5 W

Specifications Lead Wire Color

Black

Specifications Lead Wire Quantity

Specifications Locked Rotor Current

0.06/0.05 A

Specifications Mass

180 g

Specifications Maximum Air Flow

0.44/0.53 mÂ³/min | 15.5/18.7 ftÂ³/min

Specifications Maximum Static Pressure

23.5/31.4 Pa | 0.094/0.126 inH2O

Specifications Non Condensing Storage Temperature

-30 to +70 ÂºC

Specifications Operating Temperature

-30 to +60 ÂºC

Specifications Operating Voltage Range

Voltage of each model Â±10%

Specifications Rated Speed

2,250/2,700 rpm

Specifications Rated Voltage

115 V

Specifications Sound Pressure Level

26/31 dBA

San Ace 80 Series AC Fan - 80x80x20mm, 115V, Aluminum Frame
