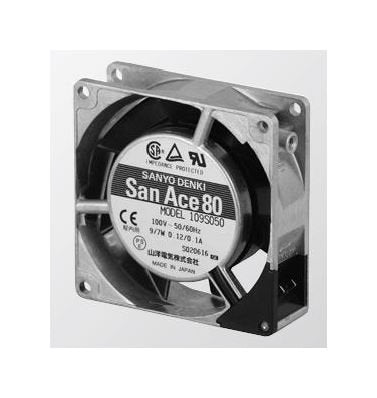

San Ace 80 Series AC Fan - 80x80x25mm
San Ace 80 Series AC Fan - 80x80x25mm
SKU:SAN-d75a6d
High-performance San Ace 80 Series AC Fan with aluminum frame, UL94V-1 rated plastics impeller, and extended service life.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
San Ace 80 Series AC Fan - 80x80x25mm
$29.99
Quantity: 1
Claim Your Seller Account
San Ace 80 Series AC Fan - 80x80x25mm
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The San Ace 80 Series AC Fan is a high-performance cooling solution designed for efficiency and durability. With a sturdy aluminum frame and UL94V-1 rated plastics impeller, this fan ensures reliable operation in diverse environments. Operating within a wide voltage range and featuring a dielectric strength of 1,500VAC, it meets stringent industry standards. Delivering a maximum airflow of 0.63 m³/min and a low sound pressure level of 30 dBA, this fan is ideal for both consumer and institutional applications. Expect extended service life with up to 25,000 hours at 60°C, making it a cost-effective choice for long-term cooling needs.
Product Specifications
Specifications Current
0.1 /0.08 A
Specifications Dielectric Strength
50/60Hz 1,500VAC 1minute (between lead conductor and frame)

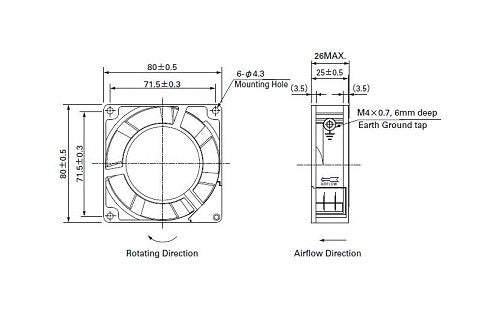

Specifications Dimensions
80Ã80Ã25 mm
Specifications Expected Life At 60c
25000 hours
Specifications Frame Material
Aluminum
Specifications Frequency
50/60 Hz
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Input
9/7 W
Specifications Locked Rotor Current
0.11/0.09 A
Specifications Mass
270 g
Specifications Maximum Air Flow
0.55/0.63 m³/min | 19.4/22.3 ft³/min
Specifications Maximum Static Pressure
21.6/28.4 Pa | 0.087/0.114 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature
-30 to +60 ºC
Specifications Operating Voltage Range
Voltage of each model ±10%
Specifications Rated Speed
2,350/2,700 rpm
Specifications Rated Voltage
115 V
Specifications Sound Pressure Level
28/30 dBA
