San Ace 80 Series AC Fan - 80x80x25mm, 230V, UL94V-1 Compliant
San Ace 80 Series AC Fan - 80x80x25mm, 230V, UL94V-1 Compliant
SKU:SAN-b96f03
High-quality San Ace 80 Series AC Fan - Efficient cooling, UL94V-1 compliant, durable design
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
San Ace 80 Series AC Fan - 80x80x25mm, 230V, UL94V-1 Compliant
$29.99
Quantity: 1
Claim Your Seller Account
San Ace 80 Series AC Fan - 80x80x25mm, 230V, UL94V-1 Compliant
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

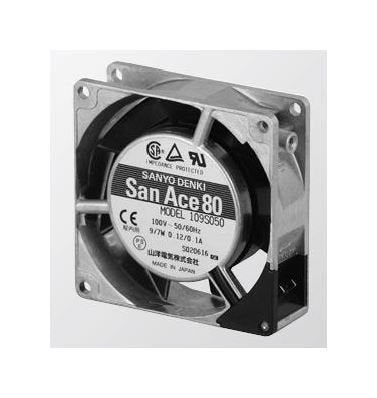

The San Ace 80 Series AC Fan is a high-quality cooling solution designed for reliable performance. With dimensions of 80x80x25mm and a durable aluminum frame, it ensures efficient heat dissipation. The fan features a UL94V-1 compliant plastic impeller, offering safety and peace of mind. Operating at 230V with a rated speed of 2,350-2,700 rpm, it delivers a maximum airflow of 0.55-0.63 m³/min. This fan is built to withstand temperatures from -30 to +60°C and has an expected life of 25,000 hours at 60°C, making it ideal for both consumer and institutional applications.
Product Specifications
Specifications Current
0.05/0.04 A
Specifications Dielectric Strength
50/60Hz 1,500VAC 1minute (between lead conductor and frame)

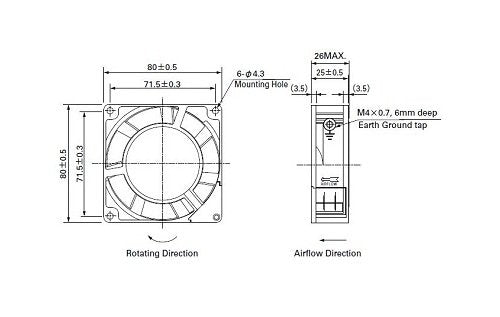

Specifications Dimensions
80Ã80Ã25 mm
Specifications Expected Life At 60c
25000 hours
Specifications Frame Material
Aluminum
Specifications Frequency
50/60 Hz
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Input
9/7 W
Specifications Locked Rotor Current
0.05/0.04 A
Specifications Mass
270 g
Specifications Maximum Air Flow
0.55/0.63 m³/min | 19.4/22.3 ft³/min
Specifications Maximum Static Pressure
21.6/28.4 Pa | 0.087/0.114 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature
-30 to +60 ºC
Specifications Operating Voltage Range
Voltage of each model ±10%
Specifications Rated Speed
2,350/2,700 rpm
Specifications Rated Voltage
230 V
Specifications Sound Pressure Level
28/30 dBA
