San Ace 80 Series AC Fan - 80x80x42mm, 100V, UL94V-1
San Ace 80 Series AC Fan - 80x80x42mm, 100V, UL94V-1
SKU:SAN-de8816
Reliable San Ace 80 Series AC Fan - 80x80x42mm, 100V, UL94V-1, for efficient cooling in various applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
San Ace 80 Series AC Fan - 80x80x42mm, 100V, UL94V-1
$29.99
Quantity: 1
Claim Your Seller Account
San Ace 80 Series AC Fan - 80x80x42mm, 100V, UL94V-1
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

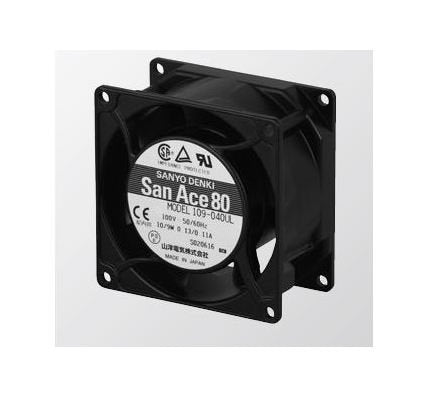

The San Ace 80 Series AC Fan model 109-047UL offers reliable cooling performance for a wide range of applications. With dimensions of 80x80x42mm, an aluminum frame, and UL94V-1 flammability-rated plastics, this fan ensures durability and safety. Operating at a rated voltage of 100V with a frequency of 50/60Hz, it delivers a maximum air flow of 0.43 m³/min and a maximum static pressure of 8.8 Pa. Designed for efficiency and longevity, it has a sound pressure level of 24 dBA, an expected life of 25,000 hours at 60ºC, and meets stringent quality standards.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Current
0.05/0.05 A
Specifications Dielectric Strength
50/60Hz 1,500VAC 1minute (between lead conductor and frame)

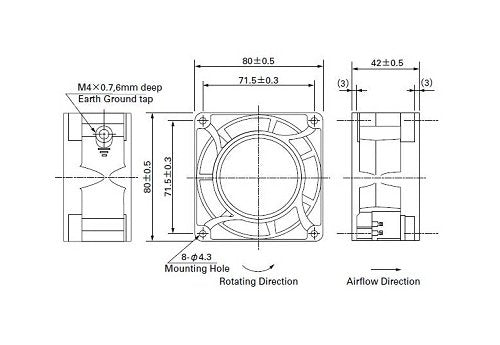

Specifications Dimensions
80Ã80Ã42 mm
Specifications Expected Life At 60c
25000 hours
Specifications Frame Material
Aluminum
Specifications Frequency
50/60 Hz
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Input
4/3.5 W
Specifications Locked Rotor Current
0.05/0.05 A
Specifications Mass
410 g
Specifications Maximum Air Flow
0.43/0.43 m³/min | 15.2/15.2 ft³/min
Specifications Maximum Static Pressure
8.8/8.8 Pa | 0.035/0.035 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature
-30 to +60 ºC
Specifications Operating Voltage Range
Voltage of each model ±10%
Specifications Rated Speed
1,500/1,500 rpm
Specifications Rated Voltage
100 V
Specifications Sound Pressure Level
24/24 dBA
