San Ace 80 Series AC Fan - 80x80x42mm, 115V, Aluminum Frame
San Ace 80 Series AC Fan - 80x80x42mm, 115V, Aluminum Frame
SKU:SAN-203d14
Reliable 80x80x42mm AC fan for industrial use, durable aluminum frame, flame-retardant plastics, 115V, 25,000-hour lifespan
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
San Ace 80 Series AC Fan - 80x80x42mm, 115V, Aluminum Frame
$45.99
Quantity: 1
Claim Your Seller Account
San Ace 80 Series AC Fan - 80x80x42mm, 115V, Aluminum Frame
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

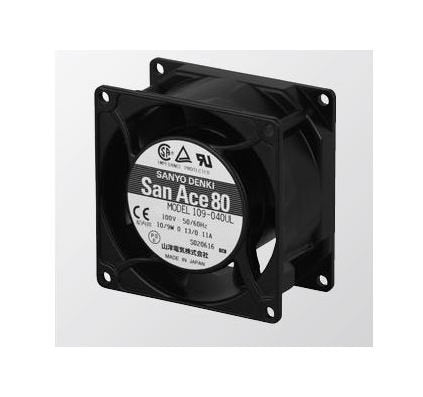

The 109-033UL San Ace 80 Series AC Fan is a reliable cooling solution designed for optimal performance in various environments. With a sturdy aluminum frame and flame-retardant plastics, this fan ensures durability and safety. Operating within a wide temperature range and offering a unique dielectric strength of 1,500VAC, this fan is suitable for industrial and institutional settings. Delivering efficient air flow at low sound levels, it is ideal for maintaining equipment temperatures and prolonging longevity. With a lifespan of 25,000 hours at 60°C, this fan is a cost-effective and dependable choice for cooling systems.
Product Specifications
Specifications Current
0.04/0.04 A
Specifications Dielectric Strength
50/60Hz 1,500VAC 1minute (between lead conductor and frame)

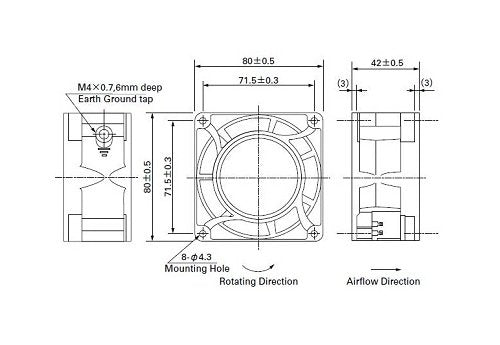

Specifications Dimensions
80Ã80Ã42 mm
Specifications Expected Life At 60c
25000 hours
Specifications Frame Material
Aluminum
Specifications Frequency
50/60 Hz
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Input
4/3.5 W
Specifications Locked Rotor Current
0.04/0.04 A
Specifications Mass
410 g
Specifications Maximum Air Flow
0.43/0.43 m³/min | 15.2/15.2 ft³/min
Specifications Maximum Static Pressure
8.8/8.8 Pa | 0.035/0.035 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature
-30 to +60 ºC
Specifications Operating Voltage Range
Voltage of each model ±10%
Specifications Rated Speed
1,500/1,500 rpm
Specifications Rated Voltage
115 V
Specifications Sound Pressure Level
24/24 dBA
