San Ace 80 Series AC Fan - Efficient Cooling Solution for Institutional Needs
San Ace 80 Series AC Fan - Efficient Cooling Solution for Institutional Needs
SKU:SAN-0278be
Enhance cooling with the 109-150 San Ace 80 Series AC Fan. Reliable, efficient, and compliant with industry standards.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
San Ace 80 Series AC Fan - Efficient Cooling Solution for Institutional Needs
$29.99
Quantity: 1
Claim Your Seller Account
San Ace 80 Series AC Fan - Efficient Cooling Solution for Institutional Needs
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

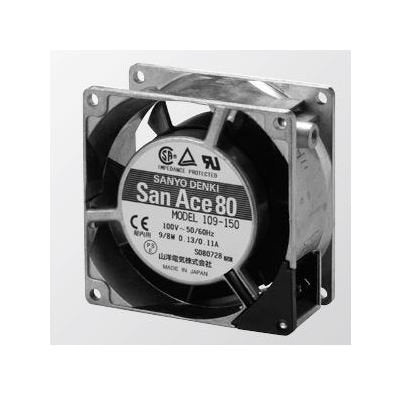

The 109-150 San Ace 80 Series AC Fan is a reliable cooling solution designed for institutional and government applications. With dimensions of 80x80x38 mm and an aluminum frame, this fan ensures durability and efficient heat dissipation. The fan operates at a rated voltage of 100V with a current of 0.13/0.11A, providing a maximum airflow of 1.05 m³/min. It meets strict standards for dielectric strength, non-condensing storage temperature, and expected life, making it a secure choice for critical environments.
Product Specifications
Specifications Current
0.13/0.11 A
Specifications Dielectric Strength
50/60Hz 1,500VAC 1minute (between lead conductor and frame)

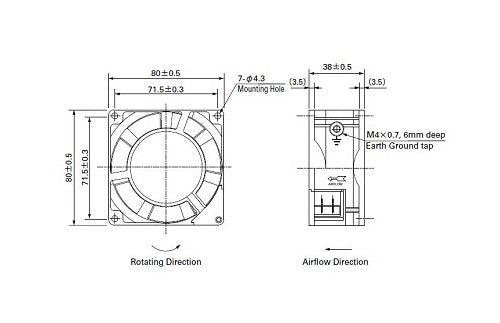

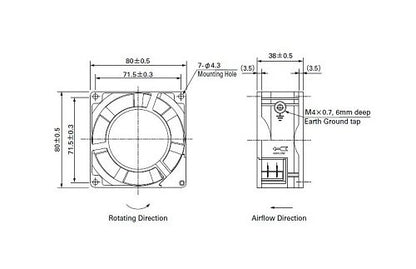

Specifications Dimensions
80Ã80Ã38 mm
Specifications Expected Life At 60c
25000 hours
Specifications Frame Material
Aluminum
Specifications Frequency
50/60 Hz
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Input
9/8 W
Specifications Locked Rotor Current
0.17/0.15 A
Specifications Mass
400 g
Specifications Maximum Air Flow
0.9/1.05 m³/min | 31.8/37.1 ft³/min
Specifications Maximum Static Pressure
31.4/44.1 Pa | 0.126/0.177 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature
-30 to +60 ºC
Specifications Operating Voltage Range
Voltage of each model ±10%
Specifications Rated Speed
2,700/3,150 rpm
Specifications Rated Voltage
100 V
Specifications Sound Pressure Level
35/39 dBA
