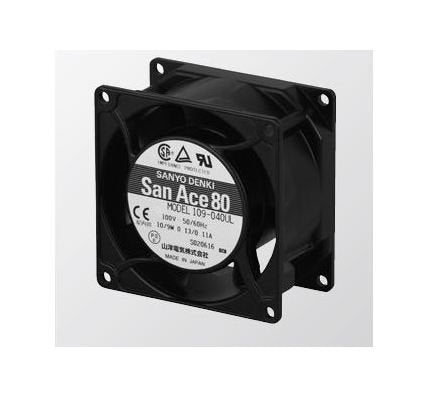

San Ace 80 Series AC Fan - Model 109-040UL, 80x80x42 mm
San Ace 80 Series AC Fan - Model 109-040UL, 80x80x42 mm
SKU:SAN-f142a4
High-performance San Ace 80 Series AC Fan for reliable cooling in industrial applications.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
San Ace 80 Series AC Fan - Model 109-040UL, 80x80x42 mm
$24.99
Quantity: 1
Claim Your Seller Account
San Ace 80 Series AC Fan - Model 109-040UL, 80x80x42 mm
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The San Ace 80 Series AC Fan - Model 109-040UL offers reliable cooling performance with dimensions of 80x80x42 mm and a lightweight aluminum frame. This fan is designed for durability with UL94V-1 rated plastic impeller material, ensuring safety and efficiency. With a dielectric strength of 1,500VAC, it meets strict industrial standards. Operating within a wide temperature range from -30 to +60 °C, it delivers a rated speed of 2,650/3,100 rpm and a maximum air flow of 0.85/1.0 m³/min. Expect a quiet operation at 30/33 dBA and an extended lifespan of 25,000 hours at 60°C.
Product Specifications
Specifications Current
0.13/0.11 A
Specifications Dielectric Strength
50/60Hz 1,500VAC 1minute (between lead conductor and frame)

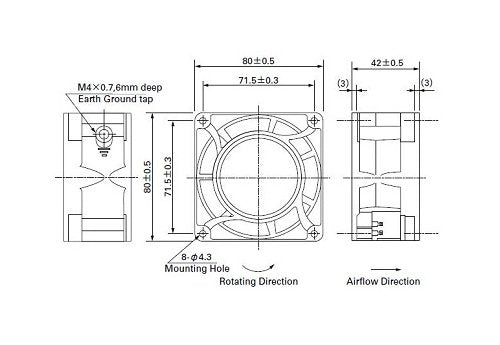

Specifications Dimensions
80Ã80Ã42 mm
Specifications Expected Life At 60c
25000 hours
Specifications Frame Material
Aluminum
Specifications Frequency
50/60 Hz
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Input
10/9 W
Specifications Locked Rotor Current
0.16/0.14 A
Specifications Mass
410 g
Specifications Maximum Air Flow
0.85/1.0 m³/min | 30.0/35.3 ft³/min
Specifications Maximum Static Pressure
24.5/35.3 Pa | 0.098/0.142 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature
-30 to +60 ºC
Specifications Operating Voltage Range
Voltage of each model ±10%
Specifications Rated Speed
2,650/3,100 rpm
Specifications Rated Voltage
100 V
Specifications Sound Pressure Level
30/33 dBA
