San Ace 80 Series AC Fan - Model 109-043UL
San Ace 80 Series AC Fan - Model 109-043UL
SKU:SAN-298a9d
Enhance cooling efficiency with the San Ace 80 Series AC Fan - Model 109-043UL. Ideal for industrial applications, providing reliable performance in a compact design.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
San Ace 80 Series AC Fan - Model 109-043UL
$45.99
Quantity: 1
Claim Your Seller Account
San Ace 80 Series AC Fan - Model 109-043UL
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The San Ace 80 Series AC Fan, model 109-043UL, is a high-performance cooling solution designed for industrial applications. With dimensions of 80x80x42 mm and a lightweight aluminum frame, this fan ensures efficient heat dissipation. The impeller is made of UL94V-1 rated plastics, offering reliable performance. Operating at a rated voltage of 115V and a frequency of 50/60Hz, this fan delivers a maximum airflow of 1.0 m³/min and a maximum static pressure of 35.3 Pa. It operates at sound pressure levels as low as 30 dBA, making it ideal for noise-sensitive environments. With an expected life of 25,000 hours at 60°C, this fan is a durable and cost-effective cooling solution for institutional and government buyers.
Product Specifications
Specifications Current
0.11/0.1 A
Specifications Dielectric Strength
50/60Hz 1,500VAC 1minute (between lead conductor and frame)

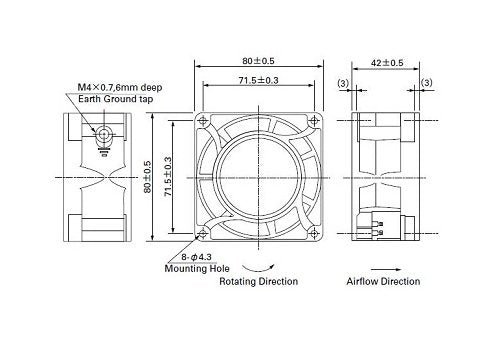

Specifications Dimensions
80Ã80Ã42 mm
Specifications Expected Life At 60c
25000 hours
Specifications Frame Material
Aluminum
Specifications Frequency
50/60 Hz
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Input
10/9 W
Specifications Locked Rotor Current
0.14/0.12 A
Specifications Mass
410 g
Specifications Maximum Air Flow
0.85/1.0 m³/min | 30.0/35.3 ft³/min
Specifications Maximum Static Pressure
24.5/35.3 Pa | 0.098/0.142 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature
-30 to +60 ºC
Specifications Operating Voltage Range
Voltage of each model ±10%
Specifications Rated Speed
2,650/3,100 rpm
Specifications Rated Voltage
115 V
Specifications Sound Pressure Level
30/33 dBA
