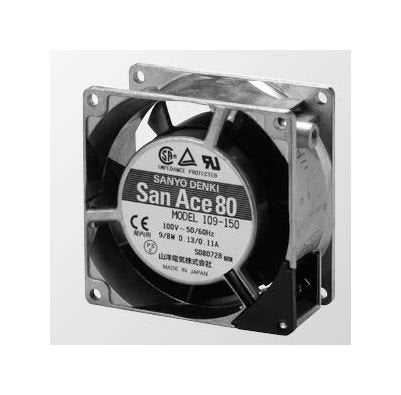

San Ace 80 Series AC Fan, Model 109-151
San Ace 80 Series AC Fan, Model 109-151
SKU:SAN-437878
High-performance San Ace 80 Series AC Fan for efficient cooling in demanding environments.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
San Ace 80 Series AC Fan, Model 109-151
$49.99
Quantity: 1
Claim Your Seller Account
San Ace 80 Series AC Fan, Model 109-151
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The San Ace 80 Series AC Fan, Model 109-151, is a high-performance cooling solution designed for reliable operation in demanding environments. With dimensions of 80x80x38 mm and a lightweight aluminum frame, this fan ensures efficient heat dissipation. The impeller, made of UL94V-1 rated plastics, guarantees safety and durability. Operating at 200V with a rated speed of 2,700/3,150 rpm, this fan delivers a maximum air flow of 0.9/1.05 m³/min. Its compliance with stringent dielectric strength, temperature, and noise level standards makes it ideal for institutional applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Current
0.07/0.06 A
Specifications Dielectric Strength
50/60Hz 1,500VAC 1minute (between lead conductor and frame)

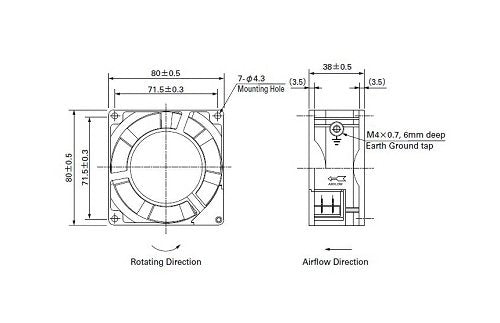

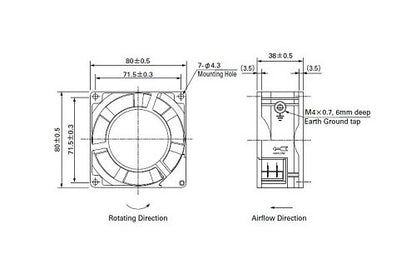

Specifications Dimensions
80Ã80Ã38 mm
Specifications Expected Life At 60c
25000 hours
Specifications Frame Material
Aluminum
Specifications Frequency
50/60 Hz
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Input
9/8 W
Specifications Locked Rotor Current
0.09/0.08 A
Specifications Mass
400 g
Specifications Maximum Air Flow
0.9/1.05 m³/min | 31.8/37.1 ft³/min
Specifications Maximum Static Pressure
31.4/44.1 Pa | 0.126/0.177 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature
-30 to +60 ºC
Specifications Operating Voltage Range
Voltage of each model ±10%
Specifications Rated Speed
2,700/3,150 rpm
Specifications Rated Voltage
200 V
Specifications Sound Pressure Level
35/39 dBA
