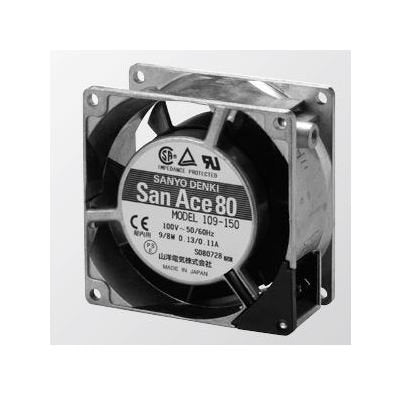

San Ace 80 Series AC Fan, Model 109-153
San Ace 80 Series AC Fan, Model 109-153
SKU:SAN-86e457
Reliable and efficient San Ace 80 Series AC Fan for high-performance cooling applications. Dimensions: 80×80×38 mm, Rated Voltage: 115V, Max Air Flow: 1.05 m³/min, Max Static Pressure: 44.1 Pa, Sound Level: 39 dBA.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
San Ace 80 Series AC Fan, Model 109-153
$34.99
Quantity: 1
Claim Your Seller Account
San Ace 80 Series AC Fan, Model 109-153
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The San Ace 80 Series AC Fan, Model 109-153, is a reliable cooling solution designed for high-performance applications. With dimensions of 80×80×38 mm and a sturdy aluminum frame, this fan ensures efficient heat dissipation. The impeller is made of UL94V-1 rated plastics, offering both safety and durability. Operating at a rated voltage of 115 V with a frequency of 50/60 Hz, this fan delivers a maximum airflow of 1.05 m³/min and a maximum static pressure of 44.1 Pa. Enjoy quiet operation with a sound pressure level of 39 dBA, making it suitable for various environments. With an expected life of 25,000 hours at 60ºC, this fan is a long-lasting cooling solution for your needs.
Product Specifications
Specifications Current
0.11/0.1 A
Specifications Dielectric Strength
50/60Hz 1,500VAC 1minute (between lead conductor and frame)

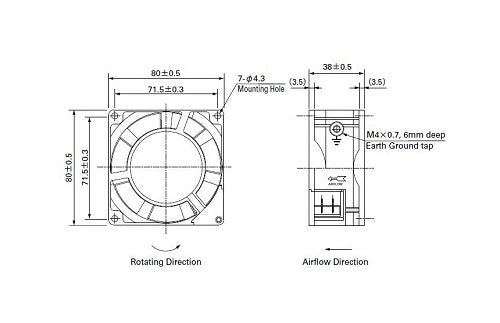

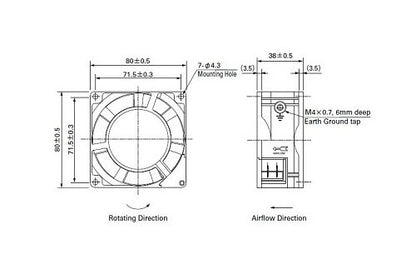

Specifications Dimensions
80Ã80Ã38 mm
Specifications Expected Life At 60c
25000 hours
Specifications Frame Material
Aluminum
Specifications Frequency
50/60 Hz
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Input
9/8 W
Specifications Locked Rotor Current
0.14/0.12 A
Specifications Mass
400 g
Specifications Maximum Air Flow
0.9/1.05 m³/min | 31.8/37.1 ft³/min
Specifications Maximum Static Pressure
31.4/44.1 Pa | 0.126/0.177 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature
-30 to +60 ºC
Specifications Operating Voltage Range
Voltage of each model ±10%
Specifications Rated Speed
2,700/3,150 rpm
Specifications Rated Voltage
115 V
Specifications Sound Pressure Level
35/39 dBA
