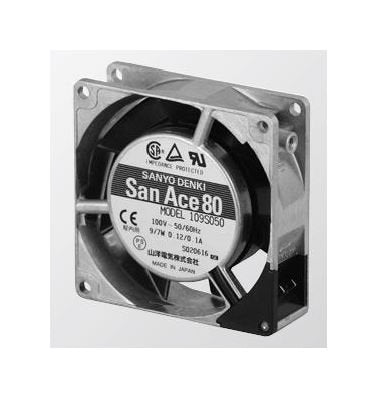

San Ace 80 Series AC Fan - Model 109S054
San Ace 80 Series AC Fan - Model 109S054
SKU:SAN-57a9d8
Reliable San Ace 80 Series AC Fan - 80x80x25 mm, Aluminum Frame, UL94V-1 Impeller Material, 230V, 38.3 Pa Max Static Pressure
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
San Ace 80 Series AC Fan - Model 109S054
$29.99
Quantity: 1
Claim Your Seller Account
San Ace 80 Series AC Fan - Model 109S054
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The San Ace 80 Series AC Fan, model 109S054, is a reliable cooling solution designed for industrial environments. With dimensions of 80x80x25 mm and an aluminum frame, this fan ensures efficient heat dissipation. The impeller is made of UL94V-1 rated plastics, offering safety and durability. Operating at a voltage range of ±10% and a rated voltage of 230V, this fan delivers a maximum air flow of 0.76 m³/min and a maximum static pressure of 38.3 Pa. It operates quietly at 33 dBA and has an expected life of 25,000 hours at 60ºC. Suitable for both consumer and institutional use, the San Ace 80 Series AC Fan is a cost-effective cooling solution that meets stringent industry standards.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Current
0.05/0.04 A
Specifications Dielectric Strength
50/60Hz 1,500VAC 1minute (between lead conductor and frame)

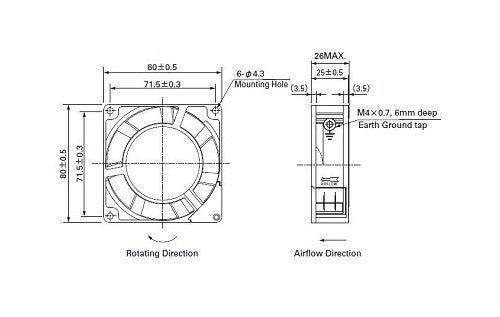

Specifications Dimensions
80Ã80Ã25 mm
Specifications Expected Life At 60c
25000 hours
Specifications Frame Material
Aluminum
Specifications Frequency
50/60 Hz
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Input
9/7 W
Specifications Locked Rotor Current
0.05/0.04 A
Specifications Mass
270 g
Specifications Maximum Air Flow
0.63/0.76 m³/min | 22.3/26.9 ft³/min
Specifications Maximum Static Pressure
27.5/38.3 Pa | 0.110/0.154 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature
-30 to +60 ºC
Specifications Operating Voltage Range
Voltage of each model ±10%
Specifications Rated Speed
2,650/3,100 rpm
Specifications Rated Voltage
230 V
Specifications Sound Pressure Level
30/33 dBA
