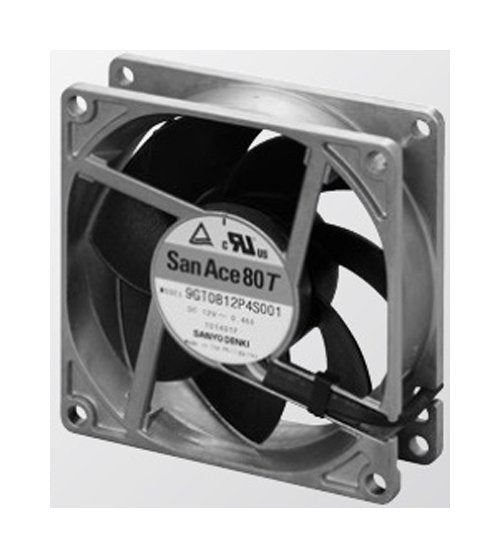

San Ace 80T Wide Temp Range Fan - 80x80x25 mm, 12V
San Ace 80T Wide Temp Range Fan - 80x80x25 mm, 12V
SKU:SAN-2fe58f
Reliable San Ace 80T Wide Temp Range Fan for extreme temperatures, PWM control, and efficient cooling.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
San Ace 80T Wide Temp Range Fan - 80x80x25 mm, 12V
$29.99
Quantity: 1
Claim Your Seller Account
San Ace 80T Wide Temp Range Fan - 80x80x25 mm, 12V
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience superior cooling with the San Ace 80T Wide Temperature Range Fan. Built with an aluminum frame and UL94V-1 plastics, this fan ensures reliable performance in extreme temperatures (-40 to +85 ºC). With a pulse-width modulation control, operating voltage range of 10.2 to 13.8 V, and a maximum airflow of 1.86 m³/min, it offers efficient cooling while maintaining quiet operation (up to 46 dBA). Trusted for durability with an expected life of 40000 hours, this fan meets key Federal/DoD procurement standards and NIST guidelines.
Product Specifications
Specifications Anode Lead Wire Color
Red
Specifications Cathode Lead Wire Color
Black
Specifications Control Lead Wire Color
Brown
Specifications Dimensions
80 x 80 x 25 mm
Specifications Expected Life At 85c
40000 hours
Specifications Frame Material
Aluminum
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Mass
130 g
Specifications Maximum Air Flow
1.86 m³/min | 65.7 ft³/min
Specifications Maximum Pulse Width Modulation Pwm Duty Cycle
100 %
Specifications Maximum Rated Current
0.46 A
Specifications Maximum Rated Input Power
5.52 W
Specifications Maximum Rated Speed
6700 rpm
Specifications Maximum Sound Pressure Level
46 dBA
Specifications Maximum Static Pressure
143 Pa | 0.57 inH2O
Specifications Minimum Air Flow
0.73 m³/min | 25.7 ft³/min
Specifications Minimum Pulse Width Modulation Pwm Duty Cycle
30 %
Specifications Minimum Rated Current
0.09 A
Specifications Minimum Rated Input Power
1.08 W
Specifications Minimum Rated Speed
2650 rpm
Specifications Minimum Sound Pressure Level
26 dBA
Specifications Minimum Static Pressure
22.3 Pa | 0.08 inH2O
Specifications Non Condensing Storage Temperature
-40 to 85 ºC
Specifications Note
Fan does not rotate when Pulse-Width Modulation (PWM) duty cycle is 0%.
Specifications Operating Temperature Range
-40 to +85 ºC
Specifications Operating Voltage Range
10.2 to 13.8 V
Specifications Pulse Width Modulation Pwm Frequency
25 kHz
Specifications Rated Voltage
12 V
Specifications Sensor Lead Wire Color
Yellow
