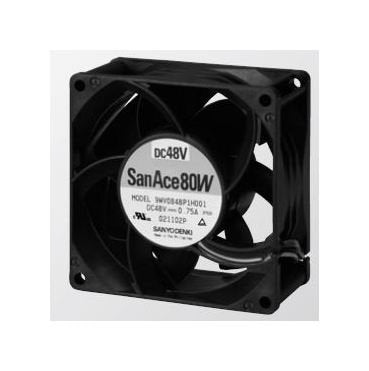

San Ace 80W Series Splash Proof 80x80x38mm Fan
San Ace 80W Series Splash Proof 80x80x38mm Fan
SKU:SAN-25bda2
Stay cool under pressure with the San Ace 80W Splash Proof Fan, ideal for industrial and institutional settings.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
San Ace 80W Series Splash Proof 80x80x38mm Fan
$29.99
Quantity: 1
Claim Your Seller Account
San Ace 80W Series Splash Proof 80x80x38mm Fan
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The San Ace 80W Series Splash Proof Fan is a reliable cooling solution suitable for industrial and institutional applications. With a durable plastic frame and UL94V-0 flammability rating, this fan ensures safety and efficiency. Operating at a rated voltage of 48V and offering a maximum airflow of 3.7 m³/min, it provides optimal cooling performance. Plus, with an expected life of 40,000 hours at 60°C, this fan is designed for long-term use in demanding environments.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Anode Lead Wire Color
Red
Specifications Cathode Lead Wire Color
Black | Blue

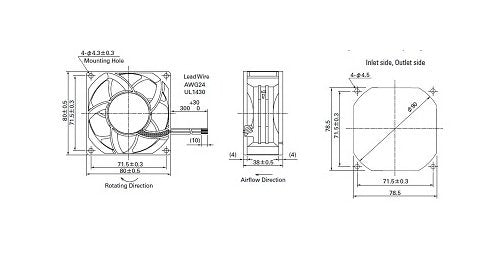

Specifications Dimensions
80Ã80Ã38 mm
Specifications Expected Life At 40c
70,000 hours
Specifications Expected Life At 60c
40,000 hours
Specifications Frame Material
Plastics (Flammability: UL94V-0)
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Mass
235 g
Specifications Maximum Air Flow
3.7 m³/min | 131 ft³/min
Specifications Maximum Pulse Width Modulation Pwm Duty Cycle
100 %
Specifications Maximum Rated Current
0.75 A
Specifications Maximum Rated Input
36 W
Specifications Maximum Rated Speed
9,700 rpm
Specifications Maximum Sound Pressure Level
63 dBA
Specifications Maximum Static Pressure
440 Pa | 1.77 inH2O
Specifications Minimum Air Flow
1.72 m³/min | 60.7 ft³/min
Specifications Minimum Pulse Width Modulation Pwm Duty Cycle
0 %
Specifications Minimum Rated Current
0.15 A
Specifications Minimum Rated Input Power
7.2 W
Specifications Minimum Rated Speed
4,500 rpm
Specifications Minimum Sound Pressure Level
43 dBA
Specifications Minimum Static Pressure
94.7 Pa | 0.38 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature
-20 to +70 ºC
Specifications Operating Voltage Range
40.8 to 52.8 V
Specifications Rated Voltage
48 V
Specifications Sensor Lead Wire Color
Yellow
