The San Ace 80W Series Splash Proof Fan is a high-quality cooling solution designed for durability and reliability. With a flammability rating of UL94V-0 for the frame material and UL94V-1 for the impeller material, this fan is built to meet stringent safety standards. Operating at a rated voltage of 24V and offering a maximum airflow of 1.03 m³/min, it ensures efficient cooling performance. With an expected life of 60,000 hours at 60°C, this fan is ideal for long-term use in various applications. Compact in size (80x80x25mm) and lightweight (130g), it is easy to install and maintain.
Product Specifications
Specifications Anode Lead Wire Color
Red
Specifications Cathode Lead Wire Color
Black

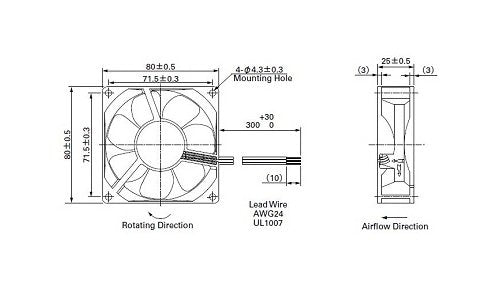

Specifications Dimensions
80Ã80Ã25 mm
Specifications Expected Life At 60c
60,000 hours
Specifications Frame Material
Plastics (Flammability: UL94V-0)
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Mass
130 g
Specifications Maximum Air Flow
1.03 m³/min | 36.4 ft³/min
Specifications Maximum Static Pressure
35.3 Pa | 0.142 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature
-20 to +70 ºC
Specifications Operating Voltage Range
20.4 to 27.6 V
Specifications Rated Current
0.07 Hz
Specifications Rated Input Power
1.68 W
Specifications Rated Speed
2,900
Specifications Rated Voltage
24 V
Specifications Sensor Lead Wire Color
Yellow
Specifications Sound Pressure Level
29 dBA
