San Ace 80W Series Splash Proof Fan - Efficient cooling, UL94V-0/V-1 rated, 40,000 hours life span

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

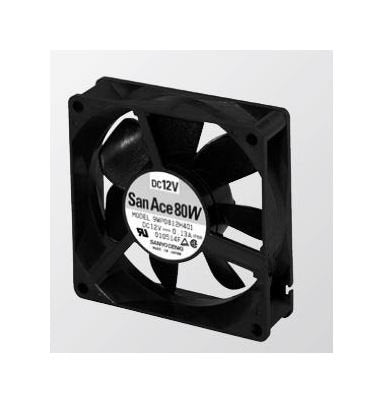

The San Ace 80W Series Splash Proof Fan is a robust cooling solution designed for both consumer and institutional usage. With a flammability rating of UL94V-0 for the frame and UL94V-1 for the impeller, this fan ensures safety and reliability. Operating within a wide temperature range of -20 to +70 ºC, it delivers efficient cooling with a maximum airflow of 1.20 m³/min. Rated for 40,000 hours at 60ºC, this fan is built to last. Weighing only 130g, it's compact yet powerful, making it ideal for various applications.

Product Specifications

Specifications Anode Lead Wire Color

Red

Specifications Cathode Lead Wire Color

Black

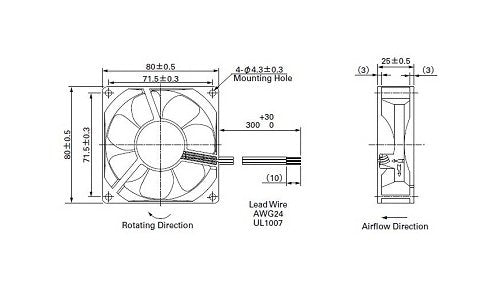

Specifications Dimensions

80Ã80Ã25 mm

Specifications Expected Life At 60c

40,000 hours

Specifications Frame Material

Plastics (Flammability: UL94V-0)

Specifications Impeller Material

Plastics (Flammability: UL94V-1)

Specifications Mass

130 g

Specifications Maximum Air Flow

1.20 mÂ³/min | 42.4 ftÂ³/min

Specifications Maximum Static Pressure

48.0 Pa | 0.193 inH2O

Specifications Non Condensing Storage Temperature

-30 to +70 ÂºC

Specifications Operating Temperature

-20 to +70 ÂºC

Specifications Operating Voltage Range

20.4 to 27.6 V

Specifications Rated Current

0.1 Hz

Specifications Rated Input Power

2.4 W

Specifications Rated Speed

3,400

Specifications Rated Voltage

24 V

Specifications Sensor Lead Wire Color

Yellow

Specifications Sound Pressure Level

34 dBA
