San Ace 80W Series Splash Proof Fan - 80x80x25 mm
San Ace 80W Series Splash Proof Fan - 80x80x25 mm
SKU:SAN-cc47a4
Reliable San Ace Splash Proof Fan for efficient and quiet cooling, ideal for industrial applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
San Ace 80W Series Splash Proof Fan - 80x80x25 mm
$29.99
Quantity: 1
Claim Your Seller Account
San Ace 80W Series Splash Proof Fan - 80x80x25 mm
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

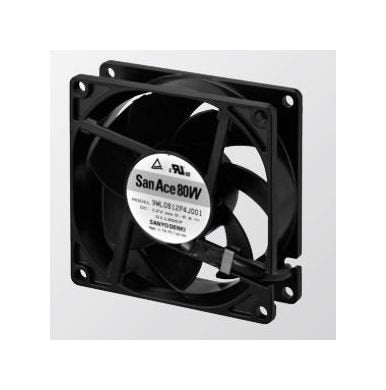

The San Ace 80W Series Splash Proof Fan is a reliable cooling solution crafted with an aluminum frame (Black coating) and flame-retardant plastics (UL94V-1). Operating at 12V, this fan offers a maximum airflow of 1.03 m³/min and a maximum static pressure of 44 Pa, ensuring optimal cooling performance. With a rated speed of 3,700 rpm and a sound pressure level as low as 13 dBA, it provides efficient cooling without excess noise. Designed for durability and longevity, this fan has an expected life of 180,000 hours at 60°C, ideal for demanding industrial applications.
Product Specifications
Specifications Anode Lead Wire Color
Red
Specifications Cathode Lead Wire Color
Black
Specifications Control Lead Wire Color
Brown

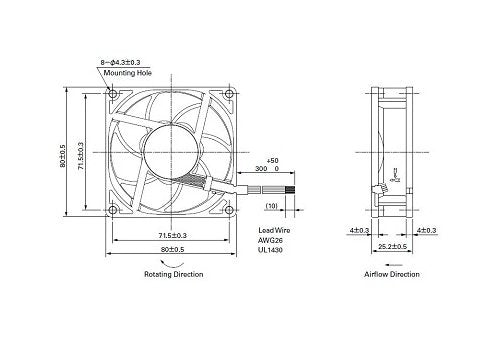

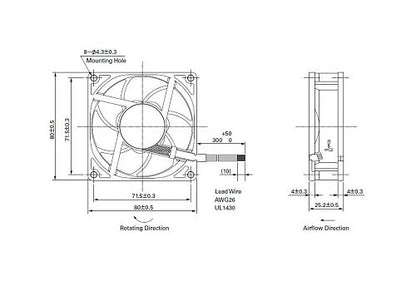

Specifications Dimensions
80Ã80Ã25 mm
Specifications Expected Life At 60c
180,000 hours
Specifications Frame Material
Aluminum (Black coating)
Specifications Impeller Material
Plastics (Flammability: UL94V-1)
Specifications Mass
150 g
Specifications Maximum Air Flow
1.03 m³/min | 36.3 ft³/min
Specifications Maximum Pulse Width Modulation Pwm Duty Cycle
100 %
Specifications Maximum Rated Input
1.44 W
Specifications Maximum Rated Input Power
0.12 A
Specifications Maximum Rated Speed
3,700 rpm
Specifications Maximum Sound Pressure Level
31 dBA
Specifications Maximum Static Pressure
44 Pa | 0.17 inH2O
Specifications Minimum Air Flow
0.3 m³/min | 10.5 ft³/min
Specifications Minimum Pulse Width Modulation Pwm Duty Cycle
25 %
Specifications Minimum Rated Current
0.04 A
Specifications Minimum Rated Input Power
0.48 W
Specifications Minimum Rated Speed
1,100 rpm
Specifications Minimum Sound Pressure Level
13 dBA
Specifications Minimum Static Pressure
3.9 Pa | 0.01 inH2O
Specifications Non Condensing Storage Temperature
-30 to +70 ºC
Specifications Operating Temperature
-20 to +70 ºC
Specifications Operating Voltage Range
10.8 to 13.2 V
Specifications Rated Voltage
12 V
Specifications Sensor Lead Wire Color
Yellow
